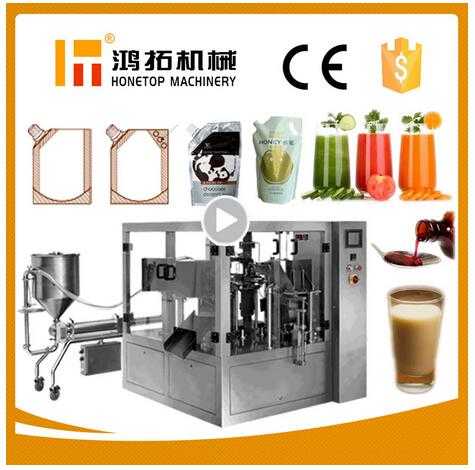

HT-8Y Series Automatic Doypack Pouch Liquid Packing Machine
It suits to pack liquid, such as milk, water, honey, ketchup, Tomato Paste, detergent, yellow wine, soy sauce, vinegar, fruit juice, peanut thick liquid, jam, hot pepper sauce, thick bean sauce packed in bags.
Quick Details
Description
- Model NO.: HT-8Y
- Automatic Grade: Fully Automatic
- Filling Valve Head: Single-Head
- Dosing Device: Plunger
- Packaging Container Lifting Structure: Pneumatic Lifting
- Packaging: Bag
- Type Machine: Rotary Type
- Working Station: 6/8
- Pouch Size Range: Width:80-200mm,Length:80-350mm
- Capacity: 20-60bags/Min
- Machine Weight: 1200kg
- Trademark: Honetop
- Specification: CE/UL
- HS Code: 8428399000
- Type: Piston Pump Filling Machine
- Material Type: Liquid
- Feed Cylinder Structure: Single-Room Feeding
- Filling Principle: Pressure
- Structure: Rotary
- Packaging Material: Plastic
- Main Function: Liquid Packing Machine
- Machine Material: Ss304/Ss316
- Filling Weight: 500ml
- Dimension(L*W*H): (L)2420*(W)1510*(H)1480mm
- Machine Warranty: One Year and Longlife Service
- Transport Package: Standard Exporting Packing (Whole Wooden Case)
- Origin: China
Full Automatic Liquid Packing Machine (Premade Pouch)
It suits to pack liquid, such as milk, water, honey, ketchup, Tomato Paste, detergent, yellow wine, soy sauce, vinegar, fruit juice, peanut thick liquid, jam, hot pepper sauce, thick bean sauce packed in bags.
It's newest technology bagging machine with max. packing speed: 60 bags/min.
Bagging Machine + Liquid Filler:
Main Electrical Components:
* SIEMENS PLC
* SIEMENS HMI
* OMRON
* SCHNEIDER
Main Pneumatic Components:
* SMC Solenoids & Cylinders
Guarding:
* Glass Door Alarm
* Air Pressure Abnormal
* Automatic detection
Functions:
* Tool-less changeover (pre-close zipper)
* Horizontal infeed belt
* The control cabinet is rotated 180 degrees
* PLC adjust bag width clamping
* Automatic lubrication system
* Included Vacuum Pump
* Internal grooved cam design
* Newest zipper open device
* Two sealing stations
* Nitrogen gas flush
* Pouch shaker
* Pouch outfeed conveyor
* Stainless Steel shell: SS304
* Date coding
* Air: 0.6m3/min
Main Technical Parameter:
|
Model
|
HT-8Y/H
|
|
Packing Range(bag size)
|
Width 70-220mm, Length 80-350mm
|
|
Packing Weight
|
20-1500ml
|
|
Capacity
|
30-60 bag/min (speed depends on filling product &weight)
|
|
Packing Precision
|
Error<±1%
|
|
Pouch Type
|
Stand-up bag, Flat bag, paper bag, laminated material etc.
|
|
Total Power
|
4.5 kw
|
|
Compressed Air Consumption
|
0.6 m3/min
|
|
Voltage
|
3 Phase 380V 50Hz/60Hz
|
|
Machine Dimensions
|
(L)3500*(W)1500*(H)1900mm
|
|
Machine Weight
|
1500kg
|
|
Note:
|
1. According to the customer request, provides the special design.
2. The machine disposition may make the choice.
|
HONETOP MACHINERY has 14 experience years since 2002 in the packing industry, LED to food flexible packaging machinery, is a professional design, development, production, trade integration in the packaging machine. The company has passed ISO900 international standard quality system certification, CE certification, UL certifciation. 95% machines have been exported to 50 countries, include USA, Canada, Chile, Mexico, Spain, Dominica, Venezuela, Russia, Turkey, Morocco, Jamaica, Nicaragua, Colombia, Middle East...
Because there are advanced design concepts, excellent product quality and efficient after-sales service, have been sold in the region has a good influence, also got the customer praise.
Has been to "quality guarantee, professional service, customer satisfaction" for management aim, to "kindheartedness and justice first, profit secondary, service basic" for business philosophy. To keep pioneering spirit, pragmatic innovation, and make high quality producs, so that our customers can really benefit from our service.
