Quick Details
Description
- Place of Origin: Hebei, China (Mainland)
- Brand Name: HSLEC
- Model Number: SC(B)9
- Usage: Power
- Phase: Three
- Coil Structure: Toroidal
- Coil Number: two
- Rated Voltage: 3kv,6.3kv,6.6kv,10.5kv,11kv
- Vector Group: Yyn0/Dyn11
- Insulation level: LI75/AC35/AC3
- Service Site: Indoor Or Outdoor
- Cooling Method: AN/AF
- Certificate: ISO9001:2008&CE
- Rated Capacity: 35mva below
- Voltage Grade: 35 KV below
- Standard: IEC60076

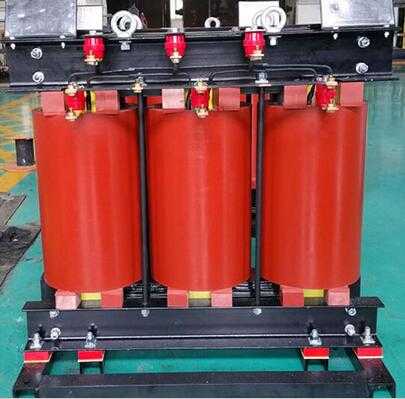

- Product name: 600kva transformer 600v 400v
With the advanced technology brought in from overseas, we developed SC9,SCB9 series and SC10,SCB10 series padding thin-insulation dry type distributing transformer whose winding is sealed up with epoxy, therefore the resin insulating dry type transformer is flame retardant, explosion-proof, free from maintenance and pollution, and dry type transformer is compacted and can go deep into load center, besides,
With scientific and reasonable design and coating craft work, dry type transformer has advantages of low partial discharge capacity, low noise, good heat dispersion and it can run over a long time with 125% rated load in the circumstance of cold wind. dry type transformer applies intelligent thermal controller and has the functions that it will alarm when there is fault or the temperature is exceeded and switch off as the function of “black box”. dry type transformer can be monitored and controlled by connecting it to the computer through its RS485 serial interface.
Therefore, dry type transformer is widely used in the places such as hotel, restaurant, airport, power plant, hospital, skyscraper, shopping center, and residential areas and other adverse environments like subways, smelt and power plant, ship, offshore drilling platform, etc.
Advantages:
1.high short-circuit resisting ability
2.low loss, low partial-discharge and low noise
3.free from maintenance
Service Conditions
1.Service site: Indoor or outdoor
2.Ambient temp:-5~40 Degree( Or According To Customer's Requirement)
3.Altitude:Isn't higher than 1000m(If It Exceeding To 1000m, Pls Declare In Order).
4.Relative humidity:No more than 90%
Product process:
1.Wound coil
2.After the mold and fixed for pouring
3.Drying in the drying oven
4.Assembly, insert core
5.For testing after assembly
6.After passing for final assembly
Technical Parameters:
1.Rated Voltage:10 ±5%/0.4KV
2.Vector Group:Yyn0 or Dyn11
3.Insulation Class:LI75/AC35/AC3
4.Voltage Grade:35 KV below
5.Capacity :5000kva below
