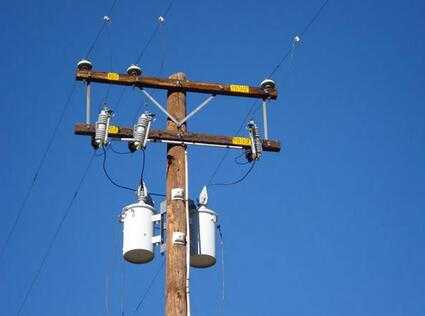

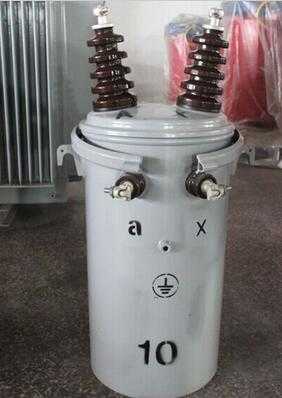

80kva 100kva Single phase oil filled pole mounted transformer

• Place of Origin: Hebei, China (Mainland)
• Brand Name: HSLEC
• Model Number: D9M
• Usage: Power
• Phase: Single, Single
• Coil Structure: Toroidal
• Coil Number: other
• High voltage range: 10kv
• Rated Capacity: 5-100kva
• Vector Group: Yyn0 Dyn11
• Cooling Type: ONAN
• Windings Material: Copper
• Iron core: Silicon sheet
• Standards: IEC,GB,ANSI
• Losses: Low losses
• Transformer: Single phase pole mounted transformer oil filled 80kva 100kva

1.The product is the implementation of the national standard GB1094”power transformer”and GB/T6451”technical requirements of three-phase oil-immersed power transformers” and JB/10317-02”single-phase oil-immersed distribution transformer and technical requirements.”

2. D9-M-5~100/10 series is a single-phase oil-immersed distribution transformer,single-frame double core column structure.Core material selection DQ-133-30(type 9),30ZH120(type 11),23ZH90(type 13) and other cold-rolled silicon steel sheet,the actual core material is used in the production of not less than design requirements.Slitting width tolerance of iron chip of 0.2mm,cutting burr of <0.03mm.

3.The product is fully sealed structure of corrugated tank,transformer oil and the surrounding air does not contact the outside world so the transformer oil will not absorb moisture,so as not to reduce the insulation strength;Additionally oxygen has no way to enter oil tank,thus avoiding the aging of insulating materials,improved the life of the product.
