Quick Details
Description
- Model NO.: HKW1
- Operation: Manual Type
- Arc-extinguishing Medium: Air
- Structure: MCCB
- Type: Circuit Breaker
- Certification: ISO9001-2000, CE, CCC
- Transport Package: Carton Package
- Origin: China
- Breaking Capacity: Low Voltage Circuit Breakers
- Speed: Normal Type Circuit Breaker
- Installation: Fixed
- Poles Number: ?p,4p
- Function: Circuit-Breaker Failure Protection
- Trademark: CNHK
- Specification: 400A
- HS Code: 8536200000

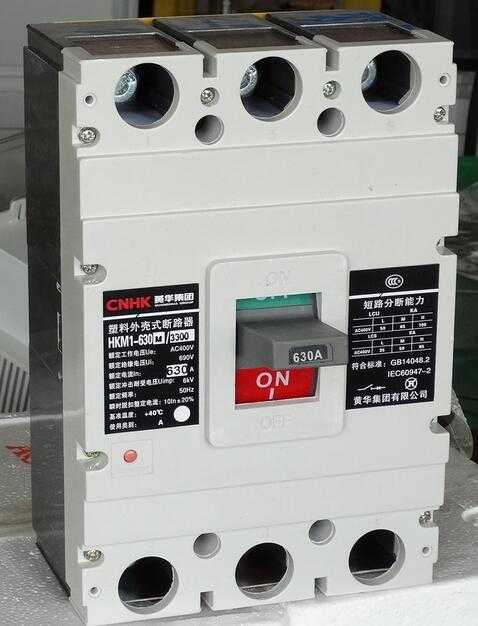

Moulded case circuit breaker(schenider type)is suitable for circuit AC 50/60Hz, rated voltage up to AC 690V, rated operating current to 1250A. It complies with iec60947-2.
Merged with international latest advanced technology, it is compact, modularized, environment-friendly, with high breaking and zero arc-over capabilities. Sdm6 MCCB works well under electric circumstance of AC50/60Hz, 690V(or lower), 12.5-1600A, which can effectively increase the efficiency of power distributing & protect the whole system against harms caused by overload, undervoltage or short circuit. It also can be used as a non-frequent switch for your engine/system.
|
Specs.
|
Rated current (A)
|
Rated insulating voltage
|
Number of pole
|
Rated operating voltage
|
Service short circuit breaking capacity Icu (kA)
|
Mechanical life
|
Utilization
category
|
|
AC380/415V
|
AC380/415V
|
Load
|
Unload
|
|
100N
|
12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100
|
950V
|
3, 4
|
690V and below
|
25
|
25
|
1500
|
8500
|
A
|
|
100H
|
70
|
70
|
|
100L
|
150
|
150
|
|
160N
|
16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160
|
35
|
35
|
1000
|
7000
|
|
160H
|
70
|
70
|
|
160L
|
150
|
150
|
|
250N
|
160, 180, 200, 225, 250
|
35
|
35
|
1000
|
7000
|
|
250H
|
70
|
70
|
|
250L
|
150
|
150
|
|
400N
|
200, 225, 250, 300, 315, 400
|
45
|
45
|
1000
|
4000
|
|
400H
|
70
|
70
|
|
400L
|
150
|
150
|
|
630N
|
315, 350, 400, 500, 600, 630
|
45
|
45
|
1000
|
4000
|
|
630H
|
70
|
70
|
|
630L
|
150
|
150
|
|
1250N
|
630, 700, 800, 1000, 1250
|
3
|
50
|
37.5
|
1000
|
4000
|
|
1600N
|
800, 1000, 1250, 1600
|
50
|
37.5
|
