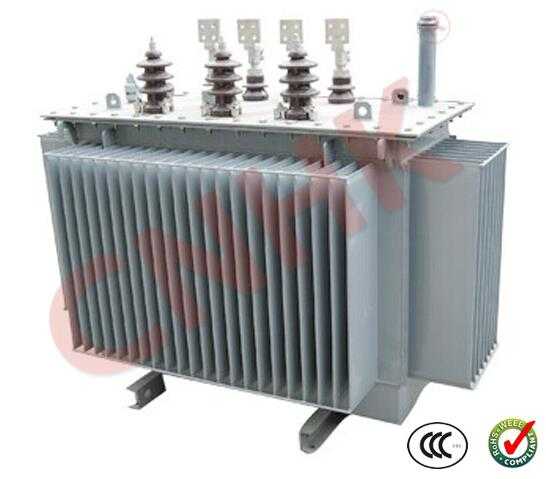

- Model NO.: S11
- Phase: Three
- Cooling Method: Oil-immersed Type Transformer
- Certification: ISO9001-2000, ISO9001, CCC
- Frequency Characteristics: 50Hz
- Brand: CHINT
- Transport Package: Wooden Package
- Origin: Made in China
- Application: Power, Electronic, Lighting, Rectifier, Audio
- Core: Core-type Transformer
- Winding Type: Two-winding Transformer
- Usage: Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
- Shape of Core: Ring
- Trademark: CNHK
- Specification: COPPER
- HS Code: 8504220000
General Description
Application: for power distribution system and large industrial enterprises, etc.
Standards: IEC 60076-11
Parameters: Rated Voltage: 6KV 6.3KV 10KV 10.5KV 11KV
Rated Capacity: 30-3150kVA.
Features: 1.High security and reliability in operation.
2.Economic and efficient to reduce network loss and working cost.
3.Low temperature rise.
4.Low noise.
5.Operation in moist place with high moisture-proof capability.
6.Customized transformers are available on your requirement
Service conditions
>>Installation height: altitude shall not exceed 1000m
>>Ambient temperature: -40ºC~40ºC
Dimension & SchematicTechnical parameters
|
Rated capacity
|
Installation dimension
|
|
(KVA)
|
L
|
W
|
H
|
C1
|
C2
|
|
30
|
980
|
870
|
1230
|
550
|
550
|
|
50
|
1010
|
900
|
1280
|
550
|
550
|
|
63
|
1030
|
920
|
1310
|
550
|
550
|
|
80
|
1050
|
930
|
1370
|
550
|
550
|
|
100
|
1070
|
970
|
1420
|
550
|
550
|
|
125
|
1090
|
990
|
1430
|
550
|
550
|
|
160
|
1130
|
990
|
1470
|
660
|
660
|
|
200
|
1150
|
1010
|
1520
|
660
|
660
|
|
250
|
1200
|
1080
|
1570
|
660
|
660
|
|
315
|
1210
|
1100
|
1620
|
660
|
660
|
|
400
|
1420
|
900
|
1730
|
660
|
660
|
|
500
|
1450
|
920
|
1790
|
820
|
820
|
|
630
|
1550
|
1000
|
1950
|
820
|
820
|
|
800
|
1700
|
1040
|
1990
|
820
|
820
|
|
1000
|
1780
|
1130
|
2050
|
820
|
820
|
|
1250
|
1880
|
1230
|
2100
|
820
|
820
|
|
1600
|
2040
|
1380
|
2260
|
820
|
820
|
|
2000
|
2350
|
1180
|
2600
|
1070
|
1070
|
|
2500
|
2450
|
1220
|
2720
|
1070
|
1070
|
|
Rated capacity
|
Voltage combination
|
Connection group
|
Loss (KW)
|
No-load current
|
Short-circuit impedance
|
Weight (kg)
|
|
kVA
|
HV kV
|
High-voltage tapping range
|
LV kV
|
symbol
|
No-load
|
On-load
|
%
|
%
|
Oil weight
|
Gross weight
|
|
30
|
20/10
|
±5×2.5%
±2×2.5%
|
0.4
|
Dyn11
|
0.09
|
0.66
|
2.1
|
5.5
|
260
|
640
|
|
50
|
0.13
|
0.96
|
2.0
|
280
|
720
|
|
63
|
0.15
|
1.145
|
1.9
|
290
|
760
|
|
80
|
0.18
|
1.37
|
1.8
|
310
|
830
|
|
100
|
0.2
|
1.65
|
1.6
|
330
|
920
|
|
125
|
0.24
|
1.98
|
1.5
|
340
|
990
|
|
160
|
0.29
|
2.42
|
1.4
|
360
|
1090
|
|
200
|
0.33
|
2.86
|
1.3
|
390
|
1230
|
|
250
|
0.4
|
3.35
|
1.2
|
430
|
1380
|
|
315
|
0.48
|
4.01
|
1.1
|
470
|
1610
|
|
400
|
0.57
|
4.73
|
1.0
|
500
|
1740
|
|
500
|
0.68
|
5.66
|
1.0
|
540
|
1960
|
|
630
|
0.81
|
6.82
|
0.9
|
6.0
|
660
|
2500
|
|
800
|
0.98
|
8.25
|
0.8
|
740
|
2900
|
|
1000
|
1.15
|
11.33
|
0.7
|
820
|
3310
|
|
1250
|
1.35
|
13.2
|
0.7
|
890
|
3780
|
|
1600
|
1.63
|
15.95
|
0.6
|
1000
|
4500
|
|
2000
|
1.95
|
19.14
|
0.6
|
1060
|
5180
|
|
2500
|
2.34
|
22.22
|
0.5
|
1130
|
5850
|
| |
|
|
|
|
|
|
|
|
|
|
|
Note: 1. High-voltage tapping range of ±5×2.5% or ±2×2.5% is available on request.
2. Performance parameters of other capacity specifications can be determined by both users and manufacturer through negotiation.
Order guide
Please specify the product model, rated capacity, HV/LV rated voltage and high-voltage tapping range, phase number, frequency, connection group symbol and so on in the order.
