- Model NO.: GW5-110
- Structure: Three-column Disconnector
- Outdoor Installation: Three Phase
- Specification: ANSI, IEEE, IEC
- HS Code: 8535300000
- Type: High-voltage
- Installation: Outdoor High-voltage
- Trademark: HAIVOL
- Origin: China

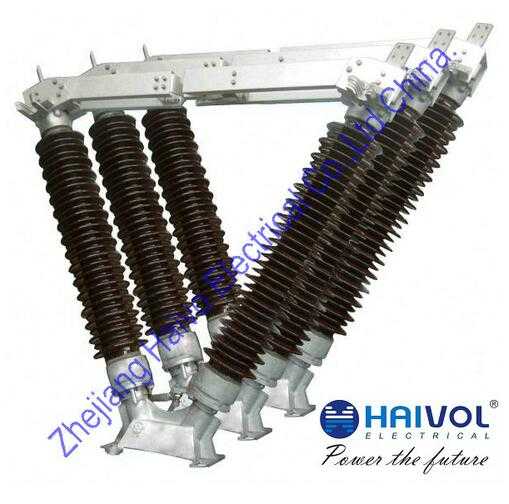

Outdoor Disconnect Switch Model GW1-12/36 (Composite Insulator Type)
GW1-12(36)/630-20(25) Outdoor HV Disconnect Switch is used to open and close circuit with voltage but no0load 50/60Hz, 12(36)KV power system. The anti-pollution type can be used in the serious pollution area. Three pole linkage, good synchronous performance.
Note: For detail, please refer to the catalogue.
|
No.
|
Item
|
Unit
|
Data
|
|
1
|
Rated volatge
|
kV
|
12,36
|
|
2
|
Rated current
|
A
|
630
|
|
3
|
Rated power frequency
|
Hz
|
50/60
|
|
4
|
Rated peak withstand current
|
kA
|
50,63
|
|
5
|
Rated short-time withstand current
|
kA
|
20,25
|
|
6
|
Rated short-time withstand current duration
|
S
|
4
|
|
7
|
Main loop resistance
|
μΩ
|
12kV≤90,36kV≤100
|
|
8
|
1min(dry) power frequency withstand voltage
|
kV
|
42/48 ,95/115
|
|
9
|
1min(wet) power frequency withstand voltage
|
kV
|
30 ,85
|
|
10
|
Lightning impulse withstand voltage(peak)
|
kV
|
75/85 , 185/215
|
|
11
|
Mechanical life
|
Times
|
2000
|
