Quick Details
Description
- Model NO.: 10kV-36kV
- Type: Current Fuse
- Operation: Manual Type
- Speed: High-Speed Circuit Breaker
- Arc-Extinguishing Medium: Air
- Certification: ISO9001-2000
- Origin: China
- Breaking Capacity: High
- Usaga: High Voltage
- Installation: Open Frame
- Structure: Moulded Case Circuit Breaker
- Function: Overcurrent Protection
- Trademark: HAIVOL
- HS Code: 8535100000

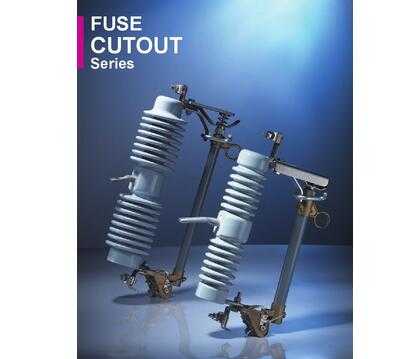

Outdoor Fuse Cutout 10KV-36KV
Application: Protection device for protecting power system from over-load and short-circuit failure.
Ratings: 11kV-36kV.
Standards: IEC 600282-2
Features:
1, High over-current protection capability, high breaking current.
2, High industrial frequency withstands voltage, and mechanical strength, etc.
3, High quality on strict testing.
Technical Data:
Rated voltage: 11kV to 66kV.
Rated current: Up to 200A.
Note: For detail, please refer to the catalogue.
|
Rated Voltage
(kV)
|
Rated current
(A)
|
Breaking current
(A)
|
Impulse voltage
(BIL)
|
Power-frequency withstand voltage (kV)
|
Leakage distance
(MM)
|
|
15
|
100
|
10000
|
125
|
45
|
350
|
|
15
|
200
|
12000
|
125
|
45
|
350
|
Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry, Founded in 2010, . It mainly manufacture power transmission & distribution equipment, covering many product series as Fuse cutout, Surge arrester, Composite insulator, Disconnecting switch, Electric power fitting.
HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in Sorth America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO high standards have received due recognition from the local power customers.
HAIVO worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available. For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.
We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
