Quick Details
Description
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: HOCEN
- Model Number: GTWY10-200
- Lift Mechanism: Telescoping Lift
- Lift Drive / Actuation: Electric Motor
- Power: 1.1KW
- Rated Loading Capacity: 125KG
- Min. Lifting Height: 2020mm
- Max. Lifting Height: 4-16m
- Table Size: 580mm*640mm
- Overall Dimensions:1400mm*850mm*2020mm
- Weight: 350KG
- Certification: ISO9001-2008
- Warranty: one year for push around lift
- After-sales Service Provided: Engineers available to service machinery overseas
- push around lift color: optional
- push around lift configuration: overload device
- Product name: mast lift table

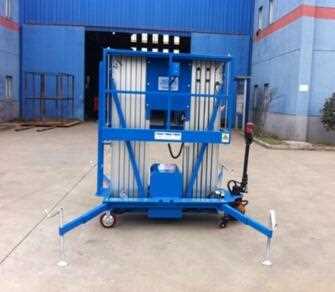

Mast lifting platform description:
Single mast of aluminum alloy lift platform, the weight light, flexibility is good, suitable for one manoperation;Special mast and roller device between the mast.the stability is good;Compact structure, small size for transport state, elevator can enter the general capsules and can pass the gate and narrow channel;Leg structure of dual protection, working more greater security, and can be close to the working face lifting operatations.
Mast lifting platform advantage:
Any optional platform maximum height specifications.
Power supply: ac mains.
Walk form: can a single human, without traction.
The power failure emergency drop device, even in the aerial work suddenly no power also need not consider drop problem.
The overall light weight, small volume, convenient transportation and moving average.
Operation is very simple, all touch button action.
Equipped with emergency stop button, prevent accidents from happening in use.
Visual clear level device, easy to observe whether the equipment on the ground in a state level.
Safety configuration:
1.Level gauge on chassic;
2.Emergency manual descending switch;
3.Antiwear polyurethane tire;
4.Limit switch;
5.Over load protection;
6.Rubber Oil pipe:double deck steer wire;
Lifting platform parameters :
|
Model Number
|
Max height(m)
|
Max working height(m)
|
Rate load(kg)
|
Platform size (m)
|
Power supply
|
Power
|
weigth (kg)
|
Overall Dimensions (L*W*H)(m)
|
|
V/HZ
|
(KW)
|
|
Single mast lift platform
|
GTWY4-100
|
4
|
5.7
|
125
|
0.51*0.55
|
AC220/50HZ
|
1.1
|
250
|
1.2*0.78*1.65
|
|
GTWY6-100
|
6
|
7.8
|
125
|
0.58*0.64
|
AC220/50HZ
|
1.1
|
280
|
1.2*0.78*1.65
|
|
GTWY8-100
|
8
|
9.7
|
125
|
0.58*0.64
|
AC220/50HZ
|
1.1
|
300
|
1.3*0.85*2.02
|
|
GTWY9-100
|
9
|
10.7
|
125
|
0.58*0.64
|
AC220/50HZ
|
1.1
|
320
|
1.3*0.85*2.02
|
|
Double mast lift platform
|
GTWY6-200s
|
6
|
7.7
|
200
|
1.16*0.54
|
AC220/50HZ
|
1.1
|
320
|
1.45*0.82*1.65
|
|
GTWY8-200s
|
8
|
9.7
|
200
|
1.26*0.54
|
AC220/50HZ
|
1.1
|
380
|
1.45*0.82*1.8
|
|
GTWY9-200s
|
9
|
10.7
|
200
|
1.36*0.54
|
AC220/50HZ
|
1.1
|
450
|
1.55*0.9*2
|
|
GTWY10-200s
|
10
|
11.7
|
200
|
1.36*0.54
|
AC220/50HZ
|
1.1
|
490
|
1.55*0.9*2
|
|
GTWY12-200s
|
12
|
13.7
|
200
|
1.46*0.54
|
AC220/50HZ
|
1.5
|
560
|
1.65*0.9*2
|
|
Other mast lift platform
|
GTWY13-250s
|
13
|
14.7
|
250
|
1.56*0.85
|
AC220/50HZ
|
3
|
1000
|
1.6*1.15*2.45
|
|
GTWY14-250s
|
14
|
15.7
|
250
|
1.66*0.85
|
AC220/50HZ
|
3
|
1100
|
1.7*1.15*2.45
|
|
GTWY15-250s
|
15
|
16.7
|
250
|
1.66*0.85
|
AC220/50HZ
|
3
|
1400
|
1.7*1.15*2.45
|
Suzhou HOCEN Logistic Machinery is a professional factory for hydraulic lifting equipment with years experience.
Suzhou HOCEN is founded in 2008, located in Suzhou city, Jiangsu Province, China. It is about half an hour from Shanghai by train. The transportation around our factory is very convenient.
There are over 200 employees in our factory, most of them are with good technology. We have advanced equipment, and we have QC to ensure the product quality. We have got the certificate of ISO9001:2008 international quality management and quality assurance system.
With years development, we have enlarge our products filed. Now our products are: Hand pallet truck, stackers, electric pallet truck, aerial work platform, scissor lift, dock leveler, unloading ramp, and so on. We can supply all the logistic machinery what you!
Our products have been exported to overseas for over 40 countries with good reputation from our customers. We will keep focusing on supplying good quality products for the customers from the world.
GOOD QUALITY, PROFESSIONAL SERVICE, ONE-STEP LOGISTIC MACHINERY SUPPLY!
