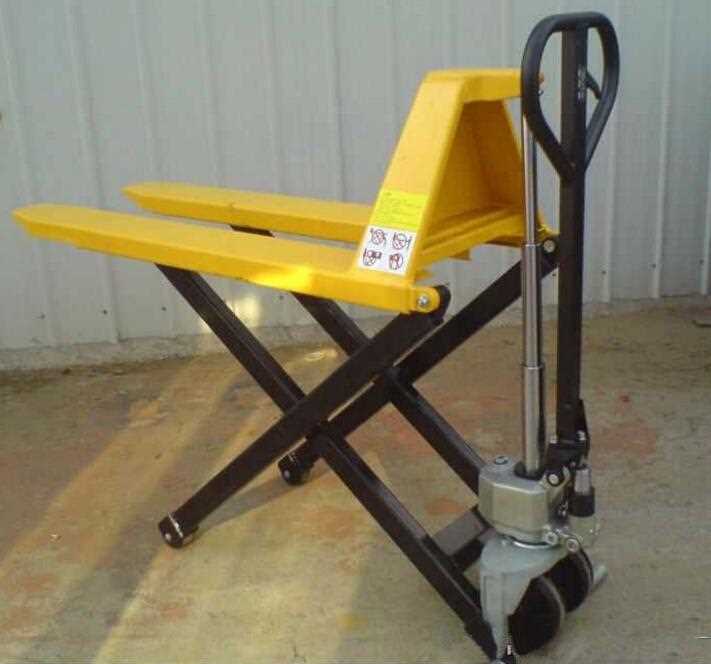

Quick Details
Description
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: HOCEN
- Model Number: BY215
- Lift Drive / Actuation: Hand
- Color: yellow or orange
- Min.fork height: 85mm
- Max.fork height: 800mm
- Length of fork: 1140mm
- N.Weight: 112kg
- Fork roller: 75x75x50
- Big wheel: 150x150x50
l Equipped with quick lift function which doubles the lift speed for loads lighter than 200kg.
l With pressure relief valve and overload valve to help prevent pump damages when loads exceeds weight limits.
l The enclosed fork tips and reinforced fork frames ensures long service life.
|
ITEM/TYPE
|
BY210
|
BY215
|
BY220
|
|
Capacity
|
kg
|
1000
|
1500
|
2000
|
|
Min.fork height
|
mm
|
85
|
85
|
85
|
|
Max.fork height
|
mm
|
800
|
800
|
800
|
|
Length of fork
|
mm
|
1140
|
1100
|
1150
|
|
Width overall fork(adjust/fixed) b5
|
mm
|
520/680
|
520/680
|
540/680
|
|
N.W.
|
kg
|
105/112
|
118/125
|
128/133
|
|
Fork rollers
|
mm
|
Φ75×50
|
Φ75×50
|
Φ75×50
|
|
Big wheel
|
mm
|
Φ150×50
|
Φ150×50
|
Φ180×50
|
|
Dimension of wooden crate
|
cm
|
193×58×72
|
193×58×72
|
2040×600×1110
|
|
Pcs/20' container
|
PCS
|
193×74×72
|
193×74×72
|
2040×740×1110
|
Suzhou HOCEN Logistic Machinery is a professional factory for hydraulic lifting equipment with years experience.
Suzhou HOCEN is founded in 2008, located in Suzhou city, Jiangsu Province, China. It is about half an hour from Shanghai by train. The transportation around our factory is very convenient.
There are over 200 employees in our factory, most of them are with good technology. We have advanced equipment, and we have QC to ensure the product quality. We have got the certificate of ISO9001:2008 international quality management and quality assurance system.
With years development, we have enlarge our products filed. Now our products are: Hand pallet truck, stackers, electric pallet truck, aerial work platform, scissor lift, dock leveler, unloading ramp, and so on. We can supply all the logistic machinery what you!
Our products have been exported to overseas for over 40 countries with good reputation from our customers. We will keep focusing on supplying good quality products for the customers from the world.
GOOD QUALITY, PROFESSIONAL SERVICE, ONE-STEP LOGISTIC MACHINERY SUPPLY!
