Quick Details
Description
- Place of Origin: China (Mainland)
- Brand Name: GYDEC, GS
- Model Number: GLX24
- Rated voltage: 12/24kV
- Gas insulation: SF6
- Extension: By plug-in type busbar
- Enclosure: Stainless steel
Specifications
1. Modular and compact design
2. KEMA type test & IEC standards
3. ISO90001 & ISO14000
4. XIHARI' type test

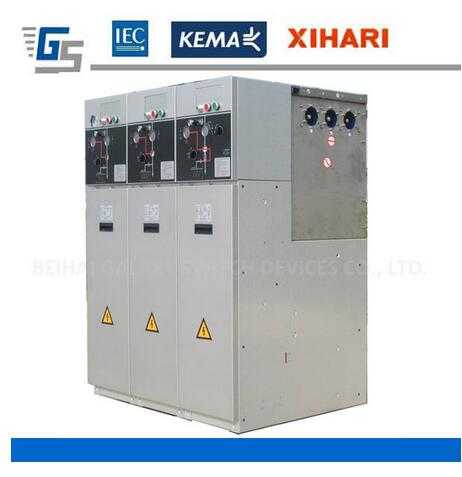

GLX24 series SF6 Ring Main Unit is an estensible, SF6 insulated siwtchgear, with rated voltage of 12&24kV. All its HV live parts are contained in an air-tight gas tank, which is made from stainless steel of 3mm. The whole switching assebly is SF6 insulated, and free from any external influence, ensuring it great reliability of service and maintenance free. By plug-in type busbar extension, GLX24 series RMU can be of free combination and full modularization. The busbar extension has passed type test for power and thermal stalility, and is fully insulated and shielded, exhibiting high reliability and safety.
GLX24 series Ring Main Unit is suitable for all MV network up to 24KV, all compact power stations, power distribution substations in all important industries, such as petrol-chemical industry, metallurgical and mining industries, and all transformer substations and wing power system.
Conformity with standards
GLX24 series meets the following international standards and national standards:
GB11022-1999 IEC60694:2002
GB3906-2006 IEC62271-200:2003
GB3804-2004 IEC60265-1:1997
GB1984-2003 IEC62271-100:2001
GB16926-1997 IEC62271-105:2002
GB1985-2004 IEC62271-102:2002
Beihai Galaxy Switch Devices Co., Ltd. (Galaxy Switch for short) is a subsidiary company of Guizhou Changzheng Tiancheng Holding Co., Ltd. and also a shareholding company of Guangxi Yinhe Decom Electric Co., Ltd. (GYDEC for short). Our company used to be a Sino-Germany joint venture and has been specialized in manufacturing VYG series embedded pole VCBs (rated voltage up to 40.5kV), GLX24 series SF6 insulated ring main units (rated voltage up to 24kV), SLX24 series solid insulated ring main units, OSIS series solid insulated switchgear and KYN28 series metal-clad withdrawable switchgear.
With the strong research and development capability, the most advanced production and testing facilities, rational management ideas and a perfect quality assurance system, Galaxy Switch is the biggest manufacturer of HV VCBs and RMUs in Guangxi, providing the best products for domestic and overseas markets. Our business network covers nationwide areas and our products are exported to Europe, Middle East, Africa, South and Southeast Asia, South America, Australia, etc.
