- Place of Origin: Guangxi, China (Mainland)
- Brand Name: GALAXY SWITCH
- Model Number: ELX24
- Rated Voltage: 12kV
- Type: Indoor
- Standard: IEC
- Insulated: Eco-friendly gas

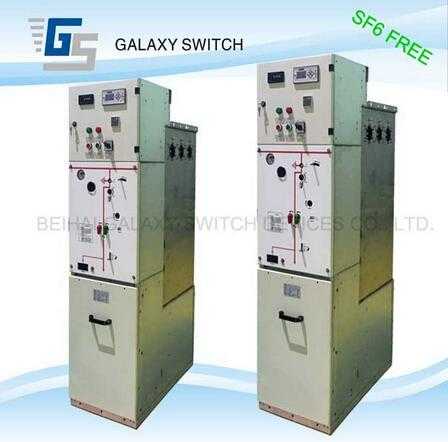

ELX24 series eco-friendly gas insulated ring main unit is characterized by reasonable design, reliable power supply, compact structure, easy for installation, flexible operation, small size and cost-effectiveness. It is applied in the distribution system of three-phase AC 50Hz, rated voltage 12kV, especially in power system of small secondary power distribution station, switching station, industrial and mining enterprises, urban residential area, airport, railway, tunnel, high-rise building, etc. to receive and distribute energy.
Service Conditions
Ambient temperature: -40℃～+40℃
Humidity
Relative humidity: daily average value ≤95%
monthly average value ≤90%
Vapor pressure: daily average value ≤2.2kPa
monthly average value ≤1.8kPa
Altitude: ≤1000m
Ambient air is not obviously polluted by dust, fog, corrosive and/or combustible gas, vapor or salt fog.
Vibration or quake from external factors rather than the switchgear or controlgear itself can be ignored
Amplitude of electromagnetic interference induced in the secondary system is not more than 1.6kV
Technical Features
ELX24 is eco-friendly gas insulated, environmental friendly, pollution-free, compact design, its outline dimensions similar to SF6 RMU.
The RMU structure is classic design, comprising of instrument compartment, gas tank compartment, cable compartment and mechanism compartment. A pressure relief passage is arranged in cable compartment and gas tank compartment, to safeguard the equipment and personnel in case of internal arc fault. Mechanical interlocks are arranged between load break switch, circuit breaker, 3-position disconnector and cable compartment, with “five-proof” functions of switchgear.
The vacuum interrupters used in ELX24 RMU adopt CuCr contact material, of small electrical wear rate, long life span, high and stable insulating strength, rapid arcing recovery, high breaking capacity. The vacuum interrupters are embedded by APG process, to meet requirements for reliable performance and miniature design.
The disconnector of RMU is double blade design, so it has 2 isolating clearances, which has high breaking capacity than single isolating clearance, also solves the insulating saturation of arcing, thus to increase the reliability of equipment, to have better electrical performance and life span.
The ELX24 is modular design, the functional units are free to be combined and integrated.
Beihai Galaxy Switch Devices Co., Ltd. (Galaxy Switch for short) is a subsidiary company of Guizhou Changzheng Tiancheng Holding Co., Ltd. and also a shareholding company of Guangxi Yinhe Decom Electric Co., Ltd. (GYDEC for short). Our company used to be a Sino-Germany joint venture and has been specialized in manufacturing VYG series embedded pole VCBs (rated voltage up to 40.5kV), GLX24 series SF6 insulated ring main units (rated voltage up to 24kV), SLX24 series solid insulated ring main units, OSIS series solid insulated switchgear and KYN28 series metal-clad withdrawable switchgear.
With the strong research and development capability, the most advanced production and testing facilities, rational management ideas and a perfect quality assurance system, Galaxy Switch is the biggest manufacturer of HV VCBs and RMUs in Guangxi, providing the best products for domestic and overseas markets. Our business network covers nationwide areas and our products are exported to Europe, Middle East, Africa, South and Southeast Asia, South America, Australia, etc.
