Quick Details
Description
- Model NO.: BFC
- Automatic Grade: Fully Automatic
- Filling Valve Head: Multi-Head
- Dosing Device: Capacity Cup
- Packaging Container Lifting Structure: Pneumatic Lifting
- Packaging: Bottle
- Category: Bevarage Processing Machinery
- Control System: PLC
- Condition: New
- Dimension(L*W*H): 2200X2100X2200mm
- Voltage: 380V/220V
- Trademark: Fillex
- Specification: ISO CE SGS
- HS Code: 84223010
- Type: Weighing-type Filling Machine
- Material Type: Liquid
- Feed Cylinder Structure: Multi-Room Feeding
- Filling Principle: Pressure
- Structure: Rotary
- Packaging Material: Plastic
- Model: Rfw
- Brand: Fillex
- Warranty: 1 Year
- Suitable Bottle: Round and Square and Other Bottles
- Material: 304 Stainless Steel
- Transport Package: Wooden Case
- Origin: China, Jiangsu

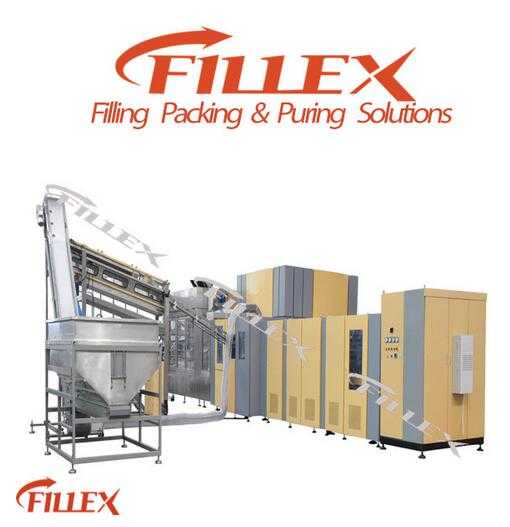

Fillex High-speed Blowing-filing-capping Combiblock combines the blowing system, filing system and capping system in one integrated system, reducing transmission, empty bottle handling, storage processes, which improved packaging hygienic condition and reduce packaging cross-contamination so as to improve the overall operating efficiency but lower the energy consumption, thereby reduce the overall production cost of enterprises.
General Technical Data
|
Model
|
ETEK 16-60-15
|
ETEK 24-80-20
|
|
Capacity
|
24000BPH/600ml PET
|
36000BPH/600ml PET
|
|
Preform ID(Neck)
|
Φ20~Φ25
|
Φ20~Φ25
|
|
Preform Height
|
≤120mm
|
≤125mm
|
|
Support Ring Outside Diameter
|
Φ33~Φ40mm
|
Φ33~Φ40mm
|
|
Bottle Height Under Support Ring
|
≤200mm
|
|
Round Bottle Diameter Range
|
Φ50~Φ70mm
|
Φ50~Φ90mm
|
Advantages:
Blowing unit
*High-speed blow valve group with high-speed network control ensures blowing technic precision and unification.
*Three-dimensional dynamic simulating design ensures exact and reliable cam transmission and mesh.
*High-pressure blow valve group optimum design helps save air a lot.
*Quick-change for mould.
*Wearable aluminum alloy mould surface with special treatment of hardness.
*Friendly man-machine interface.
*Key points automatic lubrication.
Filling unit
*High-speed and high-precision filling valve: 200ml/s, ±3mm.
*Servo drive system
*With CIP function
Capping unit
*Magnetic constant torque, defective rate≤0.2%
*Reversal caps ejecting device
*No bottle, no feeding cap.
Configuration:
*Main material: aluminum alloy, carbon steel, stainless steel, alloy steel.
*Bearing: High-quality homemade bearing and imported bearing(Japan and Germany); Oilless bearing: IGUS.
*High-pressure air valve: NORGREN, EUGEN SEITZ, SMC, etc.
*Muffler: NORGREN
*Pneumatic control line: FESTO, SMC, NORGREN.
*Electric control system: MITSUBISHI, SIEMENS, Schneider
*Sensor: TURCK, SICK, B&R, OMRON, BANNER
*Contactor: SIEMENS, Schneider.
*Connecting terminal: PHOENIX, ABB
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex has 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
--PET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
--1-2 & 3-5 Gallon Jar Bottle Water Plant
--Beverage Filling Line Auxiliary Equipment(Carbonator, UHT Sterilizer, Turned-up Bottle Sterilizer, Spray Cooler&Bottle Warmer, Homogenizer, CIP System etc)
--Bottle, Kind of Container Labeling & Post Packing Solutions
--Water Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
