Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Apparel, Chemical, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Film
- Packaging Material: Plastic film
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V/50HZ
- Power: 18kw
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: FEIYUE
- Model Number: FY 2020
- Dimension(L*W*H): 1700x650x1060mm
- Weight: 200kg
- Certification: CE Certificate
- After-sales Service Provided: No overseas service provided
- Steam: inside steam generator
- Material: 304 stainless steel
- Warranty: 1 year
- Shrinking film: PVC,PET, PP ,PA
- Usage: bottle , box shrinking
- Shrinking method: steam shrinking
- Packing speed: 1-12
- Loading weight: 7KG
- Cooling method: Fan
- Shrinking tunnel: 1300x200x200mm
Product Description

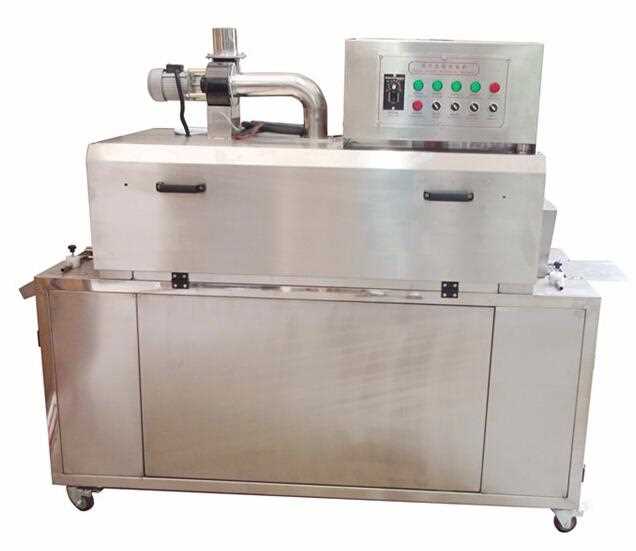

1 .Steam Heating Shrink Tunnel can be applied to different and irragurlar bottle types, e.g. round bottles, square and flat bottles.
2. It adopts seamless tube, the distribution of low-pressur of steam drum and spouting method of steam are unified.
3. The steam nozzle is divided to three adjustable segments; the height, position and steam output of each segment can be adjusted respectively, this guarantees a perfect shrinking effect.
4.The Whole machine is made of stainless steel with heat preservation, it not only saves the energy, but also matches with the international safety standard.
5. The satinless steel deforsting tray collects condensed water. The whole machine adopts the waterproof design with the convenience of operation and maintenance.
6. Built- in steam generator, safe, and convenient.
Parameters
|
Name:
|
Steam shrinking machine
|
|
Model:
|
FY 2020
|
|
Product size:
|
L: no limited, W: 140mm, H: 160mm
|
|
Shrinking material
|
PVC,PET, PP ,PA
|
|
Temperature
|
100℃
|
|
Speed
|
0-12 meter, adjustable
|
|
Voltage
|
380V,3 phases,39.5A
|
|
Power
|
18kw
|
|
Shrinking tunnel
|
1300x200x200mm
|
|
Machine size
|
1700x650x1060mm
|
|
Conveyor belt
|
Stainless steel 304, mesh belt
|
|
Loading weight
|
7 kg
|
|
Heating
|
Steam generator(built-in)
|
|
Cooling
|
Fan
|
