Quick Details
Description
- Type: Capping Machine
- Condition: New
- Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
- Driven Type: Electric
- Automatic Grade: Semi-Automatic
- Voltage: 220V/110V
- Power: 150W
- Packaging Type: Bottles
- Packaging Material: Glass, Metal
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: FY
- Model Number: DG-1
- Dimension(L*W*H): 650*650*1350mm
- Weight: 120kg
- Certification: ISO900
- After-sales Service Provided: No overseas service provided
- Name: CAPPING MACHINE
- Usage: FOOD
- Function: For food
- Warranty: 1 Year Warrenty
- Capping speed: 30 Bottles/min
- Machine Type: Semi-auto Vacuum Capping Machine

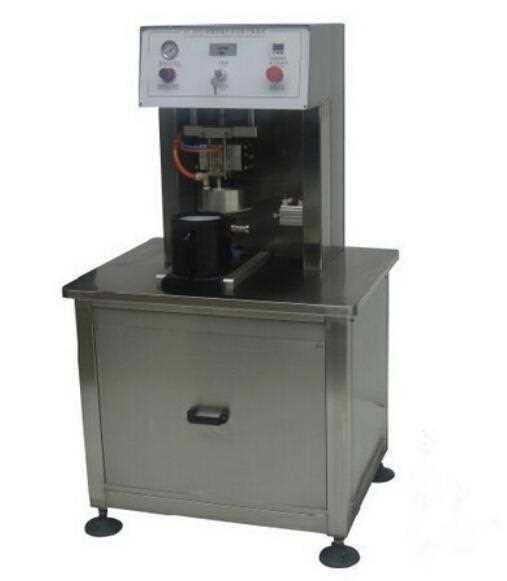

Brief introduction of tin lid vacuum rotary capping machine
The tin lid vacuum rotary capping machine uses standard tinplate lids finger-type screwing for glass bottle.
Through pumping air inside to make the inside pressure achieve the set pressure then screw the lids.
The machine is suitable for all glass bottles with screw type cap.
All 304 steel material, more sanitary and firm.
The 4 heads electric tin lid vacuum rotary capping machine is economic, broad applicability, easy operation, reliable and mobility. So this machine is suitable for the small factory, laboratory, and special specification demand.
This machine is suitable for: All kinds of tinplate threaded bottles like sauce, jam, honey, sea food can, vegetable can, bean products, etc. Especially used in cans which need sterilizing and vacuum packaging.
Technical Parameters:
|
Type
|
DG-1/4
|
|
Voltage
|
220V 50/60HZ
|
|
Power
|
150W
|
|
Air Pressure
|
0.5-0.8Mpa
|
|
Air Consumption
|
<0.2M3/min
|
|
Capping Diameter
|
25-70mm
(Can be custom-made by customer requests)
|
|
Bottle Height
|
50-150mm
|
|
Bottle Diameter
|
30-80mm
(Can be custom-made by customer requests)
|
|
Capping Speed
|
10-20 bottles/min(1 Station)
20-40 bottles/min(4 Station)
|
|
Machine size (L *W* H)
|
650*650*1350mm
|
|
Weight
|
120Kg
|
