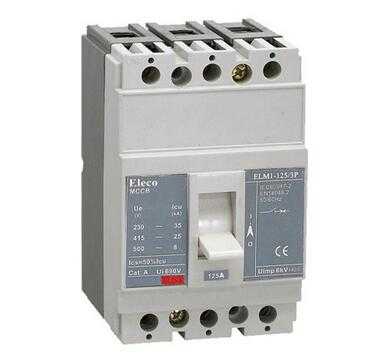

ELM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 690V and used for circuit of A. C. 50/60Hz, rated operating voltage AC 400V(or below), rated operating current up to 1250A for infrequent changing over and starting of the motors. The products conforms to IEC60947-2 standard.
Model
ELM1-160
ELM1-200
ELM1-63
Number of poles
1
2
L=2
3/4
L=4
Breaking capacity
B
N
S
Rated current of frame size Inm
160(200)
200 200L
63 63 l
Rated current In
12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160(200)
10, 12.5, 16, 20, 25, 32, 40, 50, 63
Rated insulation voltage Ui
500V
400V
Rated operating voltage Ue
230V
400V 230V
Rated current of the N pole
=In
ICU AC 400V/50Hz o-co (ka) Rated ultimate short-circuit breaking capacity
25 36
25 36 25 36
20 30 50
18.75 27
18.75 27 18.75 27
10 15 37.5
Rated current of remnant motion In (mA)
-
30 50 100 300
30 100 300
Rated current of remnant no-motion Ino (mA)
15 25 50 150
15 50 150
Icm(peat) ICU AC400V/50Hz Is Rated short-time withstand current (ka)
Uimp Rated impulse withstand voltage (V)
1000
Dielectric property (V)
2500
Endurance
Total cycles
20000
15000
10000
Electrical endurance
3000
1500
Mechanical endurance
17000
12500
8500
Lonization distance (mm)
≤30/0
Over current trip unit
Thermal magnetic release
Intelligent trip unit
Utilization category
Main circuit
A/O
Auxilliary circuit
AC-15
Outine dimensions
W(mm)
3P
30(1p)
60(2P)
76
4P
- 60(2P)
101 101
L(mm)
120
- 155
120 155
H(mm)
70
- 70
70 70
Weight
Fixed version 3p/4p
0.92/1.3
0.92/1.3 -
Plug-in version 3p/4p
- -
1.2/1.5 -
Draw-out version 3p/4p
ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects. Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
