IntelligentController is one of the core components of the circuit breaker. Properties of the intelligent controller protective functions of over-load lomg time-delay and inverse time limit, short time-delay and inverse time limit, short time-delaydefinite time limit.

Send Inquiry Add to My Favorites

Product Details

Quick Details

Description

Model NO.:EGA1 Series

Breaking Capacity:High Voltage Circuit Breakers

Operation:Manual Type

Speed:High-Speed Circuit Breaker

Arc-extinguishing Medium:Air

Installation:Fixed

Structure:ACB

Poles Number:3p,4p

Type:Circuit Breaker

Function:Conventional Circuit Breaker

Certification:ISO9001-2000, CE, CB, Semko

Number of Poles:3/4

Rated Operating Voltage Ue:230V/400V

Rated Insulation Voltage Ui:500V/400V/690V

Dielectric Property:2500V

Rated Current in:12.5,16,20,25,32,40,50,63,400,630,800,1250,1600

Trademark:Eleco

Origin:Zhejiang, China

Application
IntelligentController is one of the core components of the circuit breaker. Properties of the intelligent controller

protective functions of over-load lomg time-delay and inverse time limit, short time-delay and inverse time limit, short time-delaydefinite time limit; instantaneous opercotion pretedion;Single-phase grounding failure protection;Display of setting current Ir and operational current;Ampere meter;Over-load alarm;Short-circuit alarmTesting of operation properties

Note: The breakers with telecommunication port are available to realize remote

Model		EGA1-2000	EGA1-3200	EGA1-4000	EGA1-6300
Frame level rated current Inm(A)		2000	3200	4000	4000/5000/6300
Number of poles		3,4	3,4		3,4
Rated current In(A)		(400),630,800,1000,1250, 1600,2000	2000,2500,3200	4000	4000,5000,6300
Icu(kA)	400V	80	80(100)	80(100)	120
Icu(kA)	690V	50	80	80	808
Ics=Icw(kA)	400V	50	80	80	100
Ics=Icw(kA)	690V	40	65	65	65
Rated current at N-pole In (A)		50%In,100%In	50%In,100%In	50%In,100%In	50%In,100%In
Inherent making &breaking time		23~32ms	23~32ms	23~32ms	23~32ms
Operating performances(operations)	Electric life	500	500	500	500
Operating performances(operations)	Mechanical life	Maintenance-free 2500 Maintinable1000	Maintenance-free 2500 Maintinable1000	Maintenance-free 2500 Maintinable1000	Maintenance-free 2500 Maintinable1000
Mounting mode		Fixed with-drawable	Fixed with-drawable	Fixed with-drawable	Fixed with-drawable
Arcing distance (mm)		0	0	0	0
Intelligent controller	Standard type(M)
Intelligent controller	Telecommuni_cation type(H)

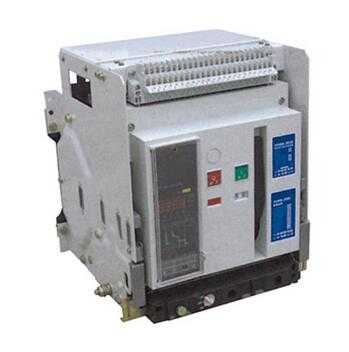

EGA1 Series High Voltage High Speed Hot Sale Air Circuit Breaker
