Quick Details
Description
- Type: Vacuum Packing Machine, General
- Condition: New
- Application: Food
- Packaging Type: Vacuum bag
- Packaging Material: Vacuum Bag
- Automatic Grade: Automatic
- Driven Type: Electric
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: SHYUTE
- Model Number: DZQ-4002SB/5002SB/6002SB/7002SB
- Usage: Outer
Specifications
1. CE Certificate
2. Double chamber
3. Vacuum sealer
4. Gas flush -Air flush
5. Food industry appliance

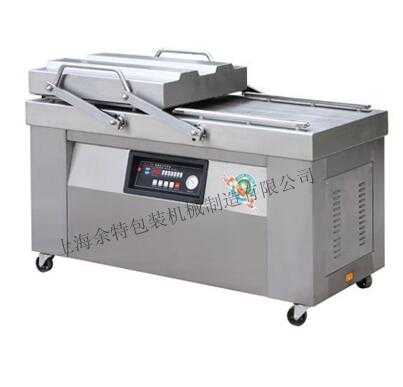

Vacuum Packaging Machine
Food vacuum sealer adapt stainless steel shells and control board with touching buttons.
Writing the technology parameter in advance, and then just need to press the top lid, the machine can automatic vacuum packing products completely.
Suitable for packing and sealing fresh or processed meat, such as hams, bacon, sausage, cheese, ready meals or high-tech electronics, metal parts etc, in a vacuum or controlled atmospheres.
Features:
? Simple in design hence easy to operate and maintain.
? Adjustable sealing times.
? Specially designed Vacuum pump for better vacuumising of the pouch .
? PLC Control System with program memory. (Optional)
? Gas Flushing attachment. (Optional)
Specifications:
|
? MODEL
|
DZQ-4002SB.
|
DZQ-5002SB
|
DZQ-6002SB
|
DZQ-7002SB
|
|
CHAMBER SIZE
|
500×510×100mm
|
600×580×100mm
|
710×680×100mm
|
810×750×100mm
|
|
SEALING BAR
|
400mm×10mm×4bar
|
500mm×10mm×4bar
|
600mm×10mm×4bar
|
700mm×10mm×4bar
|
|
ULTIMATE VACUUM PRESSURE
|
-0.1mpa
|
-0.1mpa
|
-0.1mpa
|
-0.1mpa
|
|
SPEED
|
1-3time/min
|
1-3 time/min
|
1-4 time/min
|
1-4 time/min
|
|
POWER SUPPRESS
|
380V/220V/50HZ
|
380V/220V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
MOTOR POWER
|
0.75Kw
|
1.5Kw
|
2.2Kw
|
2.2Kw
|
|
SEALING POWER
|
0.8Kw
|
0.9Kw
|
1Kw
|
1.2Kw
|
|
WEIGHT
|
190kg
|
225kg
|
365kg
|
400kg
|
Our company is located at Jiufu Economic Development Zone of Songjiang District, covering an area of 13,340 square meters. Our company is a member of China Technical Package Association. We specialize in the manufacture of machinery for food industry, packaging machinery and machinery for printing code on labels. Our company integrates development, design, manufacture, sale and service together.
For all these years, through steady hard work and continuous studies, we have developed profoundly and trained a group of outstanding technicians as well as skilled workers. With 20 years' experience in manufacturing food packaging equipment and under the leadership of our general manager, we have adhered to the principle of "being innovative to search for excellence", operational idea of "human is the first priority", guidance of "producing new famous brand products" and motivation of "cultivating talented people". Our marketing idea is "being honest, trustworthy and faithful". We strive to make more contributions to packaging industry. Please feel free to contact us for further information.
