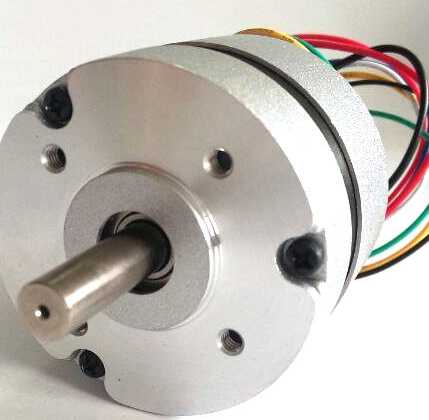

• DC Brushless Motor 36V 4000rpm / Jk57bls005

DC Brushless Motor 36V 4000rpm / Jk57bls005

Application: Universal, Industrial, Household Appliances, Car, Power Tools

Product Details

Quick Details

Description



General Specification:


(ITEM)

(Specification)

Winding Type

Delta

Hall effect angle

120 degree electrical angle

Shaft run out

0.025mm

Radial play

0.02mm@450g

End play

0.08mm@450g

Max. radial force

75N @ 20mm from the flange

Max. axial force

15N

Insulation class

Class B

Dielectics strength

500 VDC for one minute

Insulation resistance

100 MΩMin.,500 VDC



Elecrical Specification:



Model

JK57BLS005

JK57BLS01

JK57BLS02

JK57BLS03

JK57BLS04

Number of poles

4

Number of phase

3

Rated voltage

36

Rated speed

4000

Rared torque

0.055

0.11

0.22

0.32

0.43

Rated power

23

46

92

133

180

Peak torque

0.16

0.39

0.7

1

1.27

Peak current

3.5

6.8

11.5

16.5

20.5

Resistance

4.1

1.5

0.7

0.45

0.35

Inductance

8.6

4.2

2.16

1.4

1

Torque constant

0.053

0.063

0.063

0.063

0.063

Back E.M.F

3.8

6.6

6.6

6.6

6.6

Rotor inertia

30

75

119

173

230

Body length

45

55

75

95

115

Weight

0.33

0.44

0.75

1

1.25



 If you need a gearbox, we aslo are willing to serve you.




DC Brushless Motor 36V 4000rpm / Jk57bls005

Company Profile

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
