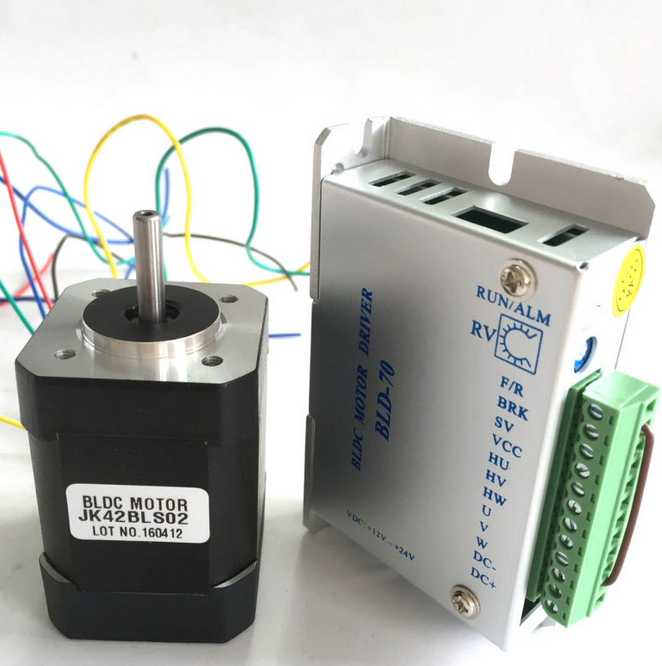

The JKBLD70 is a high performance, cost-effective 3 phase BLDC motor drive
which can provide power output 70VA max. The design is based on advanced current
control technology and feature high torque, low noise, low vibration, over current
protection, over load protection
Electrical Specifications:
|
Parameter
|
Min
|
Rated
|
Max
|
Unit
|
|
Motor Hall Sensor Angle
|
120°/240°
|
|
|
DC Power Input
|
10
|
24
|
30
|
V
|
|
Drive Current Output
|
|
3
|
5
|
A
|
|
Suitable Motor Speed
|
0
|
|
20000
|
rpm
|
|
Hall Sensor Voltage
|
4.5
|
6.25
|
6.5
|
V
|
|
Hall Sensor Current
|
|
20
|
|
mA
|
|
External Potentiometer
|
|
10K
|
|
Ω
|
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
