1.Description:

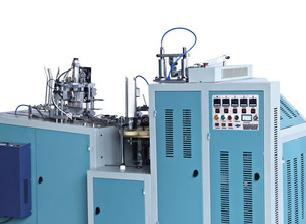

DBL12 paper cup making machine is multistation automatic machine. It has continuous automatic procedures like feeding, sealing,
oil filling, washing, heating, knurling, convex knurling, curling, unloading, etc. It's ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It's widely used for hot drink and some beverage.
2.DB-L12 paper cup machine feature:
1).For main running chain , our machines has three range running chains
2).Between the three main turn-plates running , we use gear running instead of chain
3).The turn-plate we choose aluminum material, it is not heavy, can reduce the wear rate of the machine.
4).We use aluminum material for heaters once the machine stop unormal , the cup in side can not burning
3.Main Technical Parameter:
|
Model
|
DB-L12 PAPER CUP MACHINE
|
|
Cup size
|
A: Top outside diameter: 50~90mm
B: Height :45~115mm
C: Bottom outside diameter:35~64mm
D: Depth of Cup bottom: 4.5~12mm
|
|
Applicable Paper
|
150-250gsm (one side PE coated paper)
150~380gsm (two side PE coated paper)
|
|
Production speed
|
45-55pcs/min
|
|
Electrical requirement
|
Without ultrasonic:3.8KW 380V 50Hz
With ultrasonic: 8 KW 380V 50HZ
|
|
Compressed air
|
0.4m3/min ,Air source request (double PE): 0.4-0.6 Mpa
|
|
Weight
|
1300 KG
|
|
Overall dimensions
|
(L*W*H ) 2.55*1..26*1.7 M
|
