Quick Details
Description
- Place of Origin: Henan, China (Mainland)
- Brand Name: HY
- Model Number: hydraulic lift
- After-sales Service Provided: Engineers available to service machinery overseas
- Product Name: High lifting hydraulic driving scissor lift platform price
- Load capacity: Customize
- Table size: Customize
- OEM: Accepted
- Color: as request
- Lifting height: Customize
- Base: Fixed or movable
- Applicatons: Widely used
- Power type: Electric / hydraulic driving
- Warranty: 13 months

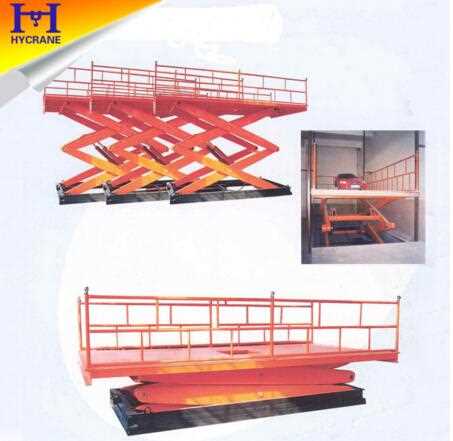

Brief introduction of scissor lift platform:
1. Hydraulic scissor lift platform is the professional high altitude operation equipment.
2. Its scissor mechanical structure makes the lift platform moves more stable. Large working platform and large loading capacity can make the work scope bigger. It suiable for several people working together.
3.Lifting height: 4m, 6m, 8m, 10m, 11m or customized according to the work needs. And the max. height of the scissor lift is 16m.
4. Load capacity: 300kg, 500kg, 800kg, 1000kg or customized according to the work needs.
Applications of hydraulic scissor lift platform:
Widely used for aerial installation & maintenance of the construction site, which with smooth floor, such as hotels, bus/railway stations, airports, gas station, sport stadium, large factory, grand hall, workshop and warehouse.
Advantages of hydraulic scissor lift platform:
1.Fixed base or movable scissor lift for option to fit with different workplaces.
2.Easy to operate and with standard maintenance.
Technical parameters:
|
Model
|
work height(M)
|
Elevation of main platform (m)
|
Rated load (Kg)
|
Table size (mm)
|
Total size(mm)
|
Auxiliary power (kw)
|
Whole reference weight (kg)
|
|
SJY 0.3-6
|
8
|
6
|
300
|
1650*750
|
2200*950*2160
|
2.2
|
650
|
|
SJY 0.3-8
|
10
|
8
|
300
|
1650*1000
|
2200*1200*2460
|
2.2
|
1200
|
|
SJY 0.8-8
|
10
|
8
|
800
|
2100*1200
|
2600*1500*2380
|
2.2
|
1400
|
|
SJY0.3-10
|
12
|
10
|
300
|
2000*1200
|
2700*1500*2640
|
2.2
|
1500
|
|
SJY0.5-10
|
12
|
10
|
500
|
2210*1200
|
2700*1700*2380
|
2.2
|
1600
|
|
SJY0.3-12
|
14
|
12
|
300
|
2220*1200
|
2820*1720*2850
|
2.2
|
2380
|
|
SJY0.3-14
|
16
|
14
|
300
|
2550*1500
|
3150*2000*2850
|
3
|
2580
|
|
SJY0.3-16
|
18
|
16
|
300
|
2990*1600
|
3550*2100*2850
|
3
|
3000
|
|
SJY0.3-18
|
20
|
18
|
300
|
3210*1600
|
3890*2120*3030
|
3
|
3920
|
|
SJY0.3-20
|
22
|
20
|
300
|
3210*1600
|
3890*2120*3030
|
3
|
3980
|
