Quick Details
Description
- Place of Origin: Henan, China (Mainland), Xinxaing, Henan province
- Brand Name: HY
- Model Number: SJY
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 3kw, 3kw
- Rated Loading Capacity: 200kg
- Min. Lifting Height: 80mm
- Max. Lifting Height: 12m
- Table Size: 1200*1000mm
- Overall Dimensions: 1200*800*1700mm---2500*1350*2300mm
- Weight: 1200kg
- Certification: ISO9001:2008 CE Certificate
- Warranty: 2 Years, 2years
- After-sales Service Provided: Engineers available to service machinery overseas
- Lifting height: 4.5m-12m
- Self Weight: 1000kg-2000kg
- Application: Cargo Handling Auxiliary Equipment
- Lift Drive: Hydraclic
- Min lifting height: 80mm

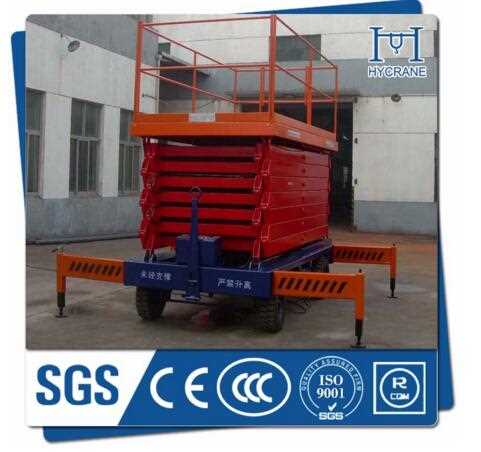

1. Brief introduction of hydraulic lifting platform:
1. hydraulic lifting platform is the professional high-altitude operation equipment.
2. Its scissor mechanical structure makes the lifting platform lift more stably.Wide working platform and large loading capacity can make the work scope bigger.It’s suiable for several pelople working together.
3.Lifting height: 4m, 6m, 8m, 10m, 11m and so on. And the max height of the scissor lift is 16m.
4. Loading capacity: 300kg, 500kg, 800kg, 1000kg and so on.
2.Applications of hydraulic lifting platform:
It is widely used for aerial installation & maintenance of the working sites without power supply and with smooth working grounds, such as hotels, bus/railway stations, airports, gas station, sport stadium, large factory,grand hall, workshops, warehouse, granary, and aerial pipeline.
3.Advantages of hydraulic lifting platform:
1.Fourwheels hydraulic lifting platform can be in many different workplaces, they don’t need external power supply.
2.They are easy to move and to operate. Only one person can let the scissor lift finish forward or backward.
Parameters of 4 Wheels Mobile Scissor Lift Platform:
|
Model
|
work height(M)
|
Elevation of main platform (m)
|
Rated load (Kg)
|
Table size (mm)
|
Total size(mm)
|
Auxiliary power (kw)
|
Whole reference weight (kg)
|
|
SJY 0.3-6
|
8
|
6
|
300
|
1650*750
|
2200*950*2160
|
2.2
|
650
|
|
SJY 0.3-8
|
10
|
8
|
300
|
1650*1000
|
2200*1200*2460
|
2.2
|
1200
|
|
SJY 0.8-8
|
10
|
8
|
800
|
2100*1200
|
2600*1500*2380
|
2.2
|
1400
|
|
SJY0.3-10
|
12
|
10
|
300
|
2000*1200
|
2700*1500*2640
|
2.2
|
1500
|
|
SJY0.5-10
|
12
|
10
|
500
|
2210*1200
|
2700*1700*2380
|
2.2
|
1600
|
|
SJY0.3-12
|
14
|
12
|
300
|
2220*1200
|
2820*1720*2850
|
2.2
|
2380
|
|
SJY0.3-14
|
16
|
14
|
300
|
2550*1500
|
3150*2000*2850
|
3
|
2580
|
|
SJY0.3-16
|
18
|
16
|
300
|
2990*1600
|
3550*2100*2850
|
3
|
3000
|
|
SJY0.3-18
|
20
|
18
|
300
|
3210*1600
|
3890*2120*3030
|
3
|
3920
|
|
SJY0.3-20
|
22
|
20
|
300
|
3210*1600
|
3890*2120*3030
|
3
|
3980
|
