• Carbonated Soda Beverage Production Line

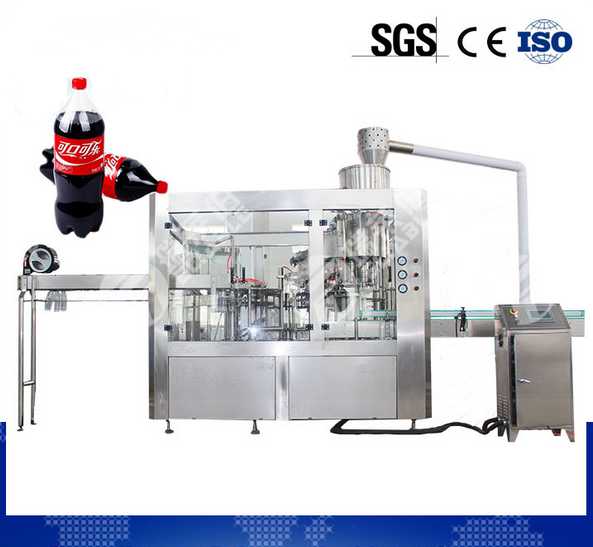

Carbonated Soda Beverage Production Line

This soda beverage production line is made of stainless steel. It has compact structure, good appearance, scientific and reasonable design. It is available for the bottles from 100ml to 3000ml.

Product Details

Quick Details

Description



Carbonated Soda Beverage Production Line

3500-4000BPH@500ML
Food Stage Stianless Steel 304
PLC Control: Simens
Suitable for 0.2-2L Plastic Bottle



Characteristics of Soda Beverage Production Line
This soda beverage production line is made of stainless steel. It has compact structure, good appearance, scientific and reasonable design. It is available for the bottles from 100ml to 3000ml.
Our soda beverage production line adopts the technology of direct contact with air conveyor, taking stead of the feeding screw and conveyors, which making it much more convenient to change the bottle shape.
This automatic soda beverage production line adopts advanced bottle neck clamping system, which get rid of the requirement of bottle height. So there is very a few parts need to change while different bottles are used on the same machine, such as the guide plate and the poking wheel.
Perfect stainless steel bottle gripper of rinsing avoids the secondary contamination by no touch with the bottle screw parts.
It is equipped with high speed filling valve of high precision filling.
The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. High efficient cap settling system, cap feeding system and no bottle no cap system make the whole capping system perfect.
It adopts spiral descent fashion for the support plate for bottle bottom at the outlet thumb wheel. It removes the need of adjusting the inlet bottle height for change bottle models.
This soda beverage production line adopts advanced PLC control and touch screen. The key electric elements are from international famous brands.

Technical Data for Soda Beverage Production Line
Model CGFD8-8-3 CGFD16-12-6 CGFD18-18-6 CGFD24-24-8 CGFD32-32-10 CGFD40-40-10
Rinsing Head No 8 16 18 24 32 40
Filling Head No 8 12 18 24 32 40
Capping Head No 3 6 6 8 10 12/10
RatedCapacity
(500ml)
1200-1500BPH 2000BPH 3500-4000BPH 7000-7500BPH 8000-10000BPH 10000-12000BPH
Overall Size (mm) 1900*1420*2000 2200*1600*2300 2450*1900*2300 2750*2180*2400 4000*2300*2300 4550*2650*2300
Weight 1.5T 2.2T 3.0T 4.0T 8.0T 12.0T
Power(KW) 3.0kw 3.5kw 4.0kw 4.8kw 7.6kw 8.3Kw
Rated Voltage 380V 380V 380V 380V 380V 380V

Reliable FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference



Carbonated Soda Beverage Production Line

Company Profile

Zhangjiagang Reliable Machinery Co., Ltd. is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China

Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc. ), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.

Reliable Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers.

Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia and South Africa.
