Quick Details
Description

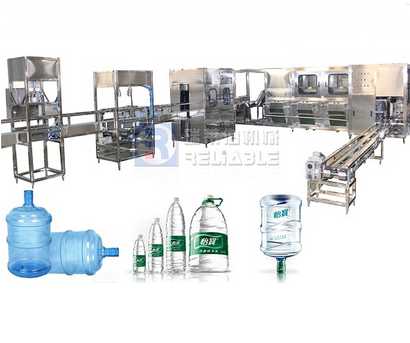

1. QGF series 5 gallon water machine consists of washing, filling and capping.
2. This 5 gallon water machine is suitable for filling all kinds of round and square barrels with drinking water.
3. Those types(barrels/hour) are:100 type,150 type,200 type,300 type,450 type,600 type,900 type,1200 type.
4. The 5 gallon water machine is made of superior stainless steel, anti-corrosive and easy to clean.
5. The bottle washer of this 5 gallon water machine can carry out multiple injections of washing to sterilize the bottles.
6. This 5 gallon water machine equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy.
Technical Data
| Model |
QGF-100 |
QGF-240 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
| Filling heads |
1 |
2 |
2 |
3 |
4 |
6 |
12 |
| Volume(Gallon) |
3&5 |
3&5 |
3&5 |
3&5 |
3&5 |
3&5 |
3&5 |
| Barrel size(mm) |
270*490 |
270*490 |
270*490 |
270*490 |
270*490 |
270*490 |
270*490 |
| Capacity(b/h) |
60-100 |
100-240 |
250-300 |
400-450 |
600-800 |
800-900 |
1000-1200 |
| Gas pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
| Gas consumption(m³/min) |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1.5 |
1.8 |
| Motor power(kw) |
1.38 |
1.75 |
3.8 |
3.8 |
7.5 |
9.75 |
13.5 |
| Related Voltage(V) |
380V/HZ |
380V/HZ |
380V/HZ |
380V/HZ |
380V/HZ |
380V/HZ |
380V/HZ |
| Weight(kg) |
680 |
800 |
1500 |
2100 |
3000 |
3500 |
4500 |
RELIABLE Service
The sample service :
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company ,and see the machine running in our factory ,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information ,you can go to visit their factory.
The customized service :
1.We can design the machines according your requirements(material ,power ,filling type ,the kinds of the bottles ,and so on),at the same time we will give you our professional suggestion ,as you know ,we have been in this industry for many years.
2. We can offer some professional suggestion when you begin this project, such as draw the factory layout for you ,analyze the source water report.
The after-sales service :
1.We will provide the bill of load on time to make sure you can get the machine quickly.
2.When you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.We ask feedback from our customer and offer help when the production line have been used for some time!
4.We provide one year warranty with spare parts free.
Why choose us :
1. We own a factory ourselves, and we can assure the quality we manufactured.
2. We offer you high quality machines with high quality after-service . Also we have one year warranty of the spare parts , free of charge.
3. We will deliver the machines on time as the date we agreed both side.
4. We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run
the machines .
5. After we deal down all the things , we will offer you a spare parts list for your reference
Zhangjiagang Reliable Machinery Co., Ltd. is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China
Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc. ), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.
Reliable Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers.
Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia and South Africa.
