Quick Details
Description
Introduction:

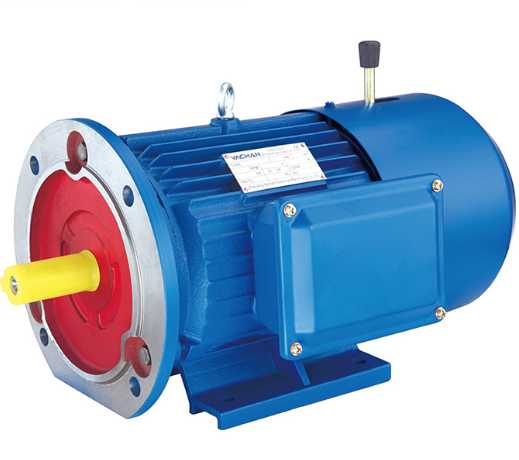

YEJ series dc brake,designed according to IEC standard,are totally-enclosed,fan-coolde,squirrel-cagethree-phase Asynachronous motors with additional electromagnetic brake disc dc direct current.
The motor with removable feet,is made of aluminum-alloy cite-casting Various mounting models available.It has a lot of advantages including beautiful modeling,compact structure,high efficiency,low noise,low vibration,etc.Thebrake has a manual and electric release.
Motor Features:
1. Frame size:H80-225;
2. Power:0.75-45KW;
3. Voltage:380V,400V,415V;
4. Rated Frequency: 50 Hz/60Hz ;
5. Poles: 2 / 4 / 6 / 8
6. Speed: 700 -3000 r/min
7. Ambient Temperature: -15°C-40°C
8. Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9. Duty: continuous (S1);
10. Insulation Class: B/F/H ;
11. Protection Class: IP44,IP54,IP55;
12. Frame material: Cast iron body , aluminum body
13. Cooling Method: IC411 Standards;
14. Altitude: No more than 1,000 meters above sea level;
15. Packing: 80-112 frame be packaged by carton&pallets
132-225 frame be packaged by wooden case;
16. Certifications: CE, CCC, ISO9001: 2008
