Introduction:

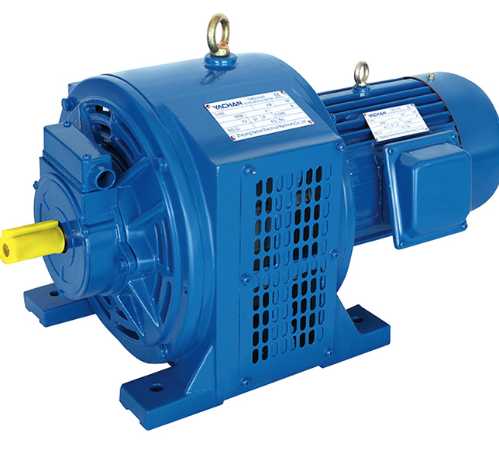

YCT series electromagnetic governor motor,one of themainproducts derived form Y series motor,consists of electromagnetic slipclutch,speed meter generator and pulling motor,is matched withcontroller which can regulate the speed steplessly under constant torque within the rated speed regulating range.
It can be used in the industries of textile,chemical,metallurgical,papermaking,plastic processing etc.and various machines and equipments which require speed regulation.It is suitable for the machines whose runing torque loads decrease progressively,such as centrifugal pump and blower,etc.The capacity or pressure can be controlled with speed regulation instead of valve,which has conspicuous effects of energy saving.
Motor Features:
1) A.C stepless speed regulating, it has automatic regulating system,speed rate of variation is not exceed 2.5% ;
2) Free of uncontrolled point and wide range of speed regulating(max 10:1) ;
3) Good performance and with higher starting torque;
4) Simple structure , easy in operation and maintenance;
Low power in controlling, it could has multi-mode to control ;
1. Frame size:H112-355;
2. Power:0.55-90KW;
3. Voltage as follows:
1)Rated Voltage for Controller: 220V;
2)Rated Voltage for the motor:380V(three phase) 220V(single phase)
4. Rated Frequency: 50 Hz ;
5. Poles: 4A,4B
6. Speed: 1250-125, 1320-132, 1320-440 ,1320-600
7. Ambient Temperature: -15°C-40°C
8. Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9. Duty: continuous (S1);
10. Insulation Class: B/F;
11. Protection Class: IP21;
12. Frame material: Cast iron body ;
13. Cooling Method: IC411 Standards;
14. Altitude: No more than 1,000 meters above sea level;
15. Packing: 112-355 frame be packaged by wooden cases;
16. Certifications: CE, CCC, ISO9001: 2008
