Description

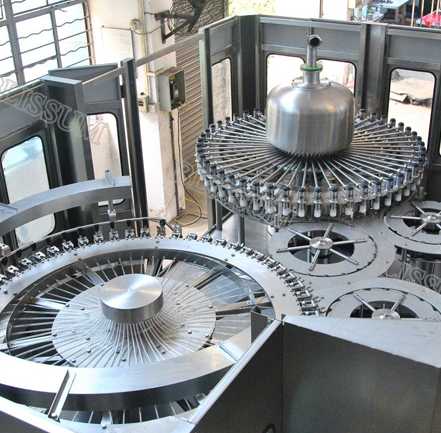

Blissun's RFC-H series filling machines are designed especially for bottling synthetic juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 1000BPH to 32000BPH, it adopts the pressure & rotative filling style.
Features:
1. Centre filling valves used which are designed for maximum flow rate and minimum bottle distortion during HOT filling.
2. Inbuilt CIP arrangement provided on the machine for fill tank and fill valve sanitation.
3. Dummy caps provided fitting on all filling valves during CIP.
4. Automatic PLC controlled valve washing cycle before commencement of every production cycle for overall hygiene.
5. Unique filling cam designs which prevents filling up to the bottle collar without spillage.
6. Bypass line provided for flushing the product fill tank after completion of CIP
7. Supper heavy stainless steel juice tank build in Welcome to view our hot filling machine for juice and tea drink.
Advantages of Juice Filling Machinery/Equipment:
A. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as Mitsubishi and Siemens.
Welcome to visit our factory and inspect our juice filling machine.
| Model |
RFC-H
14-12-5 |
RFC-H
16-16-5 |
RFC-H
24-24-8 |
RFC-H
32-32-8 |
RFC-H
40-40-10 |
RFC-H
50-50-15 |
washing,filling,sealing
(No.) |
14-12-5 |
16-16-5 |
24-24-8 |
32-32-8 |
40-40-10 |
50-50-15 |
| Production capacity(bottle/hour) (500ml) |
5000 |
8000 |
10000 |
12000 |
15000 |
18000 |
| Suitable bottle height (mm) |
H=170-320
φ=50-100
(330~1500ml) |
H=170-320
φ=50-100
(330~1500ml) |
H=170-320
φ=50-100
(330~1500ml) |
H=170-320
φ=50-100
(330~1500ml) |
H=170-320
φ=50-100
(330~1500ml) |
H=170-320
φ=50-100
(330~1500ml) |
| Spraying pressure (MPa) |
0.25-0.3 |
0.25-0.3 |
0.25-0.3 |
0.25-0.3 |
0.25-0.3 |
0.25-0.3 |
| Total Power (kw) |
2.2+0.37 |
2.2+0.37 |
3+0.45 |
5.5 |
7.5 |
11 |
| Overall dimension(L×W×H) (mm) |
2360×1770×2700 |
2760×2060×2700 |
2800×2230×2700 |
3550×2650×2700 |
4700×3320×2700 |
5900×4150×2700 |
| Weight (kg) |
2600 |
3500 |
4650 |
6800 |
8500 |
Our company is specialized in manufacturing water filling machines, carbonated drink filling machine, juice filling machine, sleeve labeling machines, hot melt glue OPP labeling machine and we can offer completely beverage production lines.
We has exported to more than 30 countries and regions, such as USA, Russia, Greece, Agentina, Australian, UAE, Thailand, Mongolia, Kirgizia, Malaysia, Indonesia, Philippine, Vietnam, Libya, KenyaItc. Therefore our products are highly recommended by many customers. In the meantime, our company can provide our customers with such service as technology consultation, plane design for workshop, installation and testing, technique training.
Established in 2002, BLISSUM located in the famous Suzhou city, near Shanghai city, own 4000 square meter modern factory. BLISSUM focus on filling, packing & water treatment field, BLISSUM is one of the professional & reliable Chinese manufacturers & provider for liquid & semi-liquid filling & packaging machinery, blow molding machines and water treatment systems with reliable quality & pretty good after sale service with CE certification & ISO9000: 2001 certification.
BLISSUM Manufactures & Provides Full range of equipments for Water Filling Line, Juice/Tea Fill Line & Carbonated Drink Filling Line
ü Beverage Processing System 1, 000 Ltrs/Hr to 10, 000 Ltrs/Hr
ü Water Treatment System 1, 000 ltrs/Hr to 100, 000 Ltrs/Hr
ü Blow Molding Machine - 1, 000BPH to 7, 000BPH for 500ml
ü Bottlle Unscrambler up to 2, 0000BPH
ü Filling Machine - 1, 000BPH to 24, 000BPH for 500ml (PET & Glass Bottles Crown Caps)
ü OPP Labeling Machine - up to 24, 000BPH
ü PVC Shrink Labeling Machine - up to 24, 000BPH
ü Wrap Around Case Packer
ü Shrink Wrapping Machine
ü 5 Gallon Filling Line with all the Line Accessories
ü Full-automatic & semi-automatic blow blos moling machine
