• Automatic Liquid Filling and Capping Machine and Screw Cap Sealing Machine

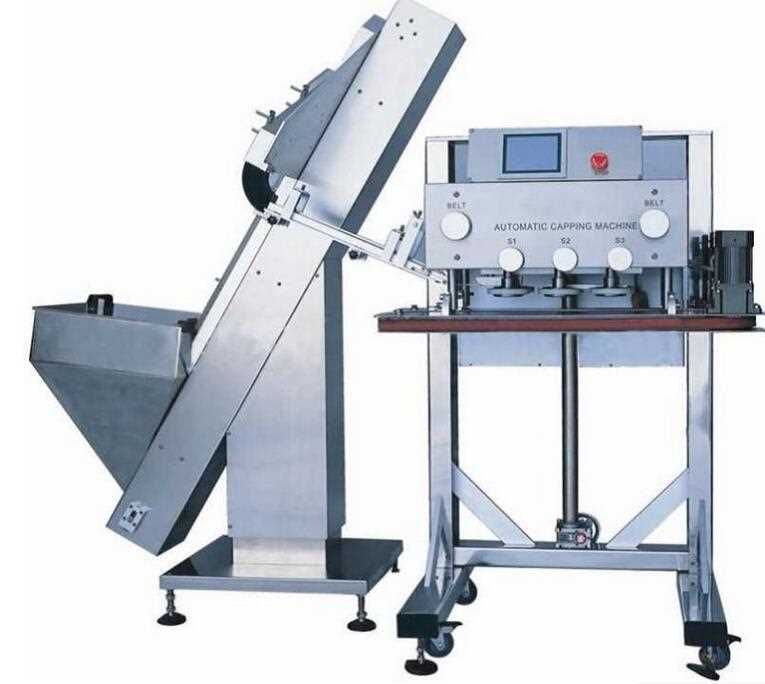

Automatic Liquid Filling and Capping Machine and Screw Cap Sealing Machine

Advantage: Electrically Controlled Movement; Cap diameter: 20-100mm; Capping type: Screw Capping Locking;

Product Details

Quick Details

Description

Quick Details

  • Type: Capping Machine
  • Condition: New
  • Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
  • Driven Type: Pneumatic
  • Automatic Grade: Automatic
  • Voltage: 220V/380V
  • Power: 1.3kw
  • Packaging Type: Bottles
  • Packaging Material: Metal, Plastic
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: BSP Packaging
  • Model Number: BSP-GC-L
  • Dimension(L*W*H): 2000*1000*1800mm
  • Weight: 200kg
  • Certification: CE Certificate
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Screw Capping Machine
  • Usage: Glass plastic metal bottle
  • Function: Auto Feeding Screwing Pressing Caps
  • Material: Stainless Steel 304
  • Warranty: 1year
  • Capping speed: 40-80/mins
  • Machine Type: Fully-automatic
  • Advantage: Electrically Controlled Movement
  • Cap diameter: 20-100mm
  • Capping type: Screw Capping Locking

MODEL NAME:

BSP-GC-L

Outline dimensions (L x W x H):

2000 x 1000mm x 1800mm

Weight of machine :

about 200kg

Power :

AC220V,50HZ,1.3KW

Air consumption :

≧0.5Mpa

Applicable bottles diameter :

¢50~¢100mm

Applicable bottles height :

50~210mm

Applicable cap diameter :

¢ 20- ¢ 100mm

Applicable cap height :

10-50mm

Production capacity :

40~80 bottles/min



Automatic Liquid Filling and Capping Machine and Screw Cap Sealing Machine
