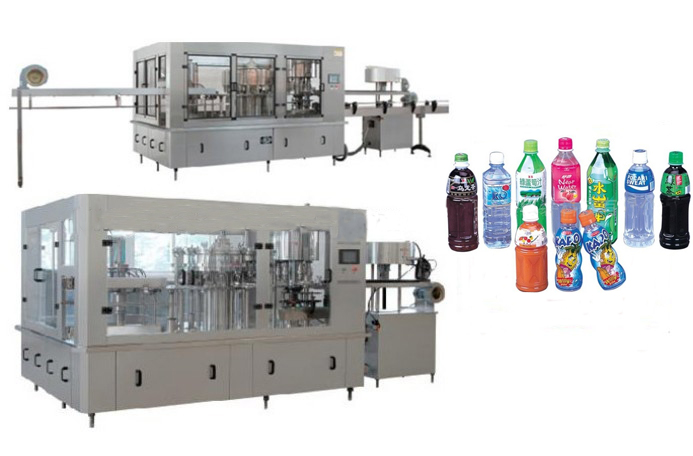

Automatic Bottle Juice beverage Filling Machine
Apple juice filling machine:
1.filling capacity: 2000-20000bph
2.filing volume: 200-2000ml
3.filling material: PET
4.CE,ISO
High Effciency 3-in-1 Automatic Bottle Apple Juice Filling Machine
Introduction of juice filling machine:
1.The machine is mainly used for bottling juice ,such as apple juice ,mango juice,orange juice,and other fruit juice.It can also be used for bottling water ,such as pure water and mineral water.
2.The High Effciency 3-in-1 Automatic Bottle Apple Juice Filling Machine include washing part ,filling part,and sealing part,all of the process is automatic.
3. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more easy.
4. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automaticly,
5. Transducer is uesd in bottle entering chains to adjust speed to make the operation of moving bottle steadily and reliably.
6. It is convenient to operate with higher auromation because everypart of the machine is inspected to run with photo electicity.
7.The machine can be produced acoording to your requiements,because we are professional beverage processing manufacture.
| Model |
RXGF18-18-6 |
RXGF24-24-8 |
RXGF32-32-10 |
RXGF40-40-12 |
| Capacity(500ml) |
6000-8000 |
8000-10000 |
10000-12000 |
12000-14000 |
| Washing heads |
18 |
24 |
32 |
40 |
| Filling heads |
18 |
24 |
32 |
40 |
| Capping heads |
6 |
8 |
12 |
15 |
| Bottle size |
Round or Square |
| Diameter of bottle |
Φ50-Φ100 |
| Height of bottle |
150-310 |
| Compressed air pressure |
0.3-0.7 |
| Washing medium |
Sterilize water |
| Power(kw) |
3.84 |
4.1 |
5.6 |
|
| Overall dimension(mm) |
2400*1900
*2300
|
2800*2100
*2300
|
4200*2300
*2300
|
5000*2800
*2400
|
| Weight(kg) |
3000 |
4000 |
5000 |
7500 |
