Quick Details
Description
Place of Origin:Changzhou, China
Brand Name:JK

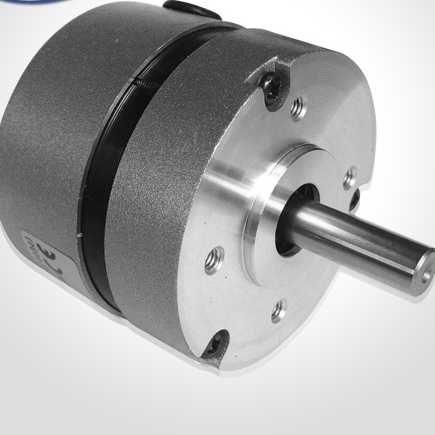

Model Number:JK57BLS005
Certification:CE,ROHS ,ISO9001
Minimum Order Quantity:1PCS~5PCS
Price:US$10~US$50
Packaging Details:EXPORT CARTON
Delivery Time:FOR SAMPLES , 7-10 days
For batch . 15-25days.
Payment Terms:T/T,L/C, PAYPAL, Western union,
Supply Ability:100000pcs/month
GENERAL SPECIFICATIONS
Winding typeDelta
Hall effect angle120 degree electrical angle
Shaft run out0.025mm
Radial play0.025mm@460g
End play0.025mm@4000g
Max. radial force75N @ 20mm from the flange
Max. axial force15N
Insulation classClass B
Dielectric strength500VDC for one minute
Insulation resistance100MΩMin., 500VDC
Rated torque :0.055N.m
Rated power :23W
Peak torque :0.16N.m
Peak current : 3.5A
Line to line resistance : 4.1ohms
Line to line inductance : 8.6mH
Torque constant : 0.053 Nm/A
Back E.M.F : 3.8V/KRPM
Rotor inertia : 30g.cm2
Mass : 0.33 Kg
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
