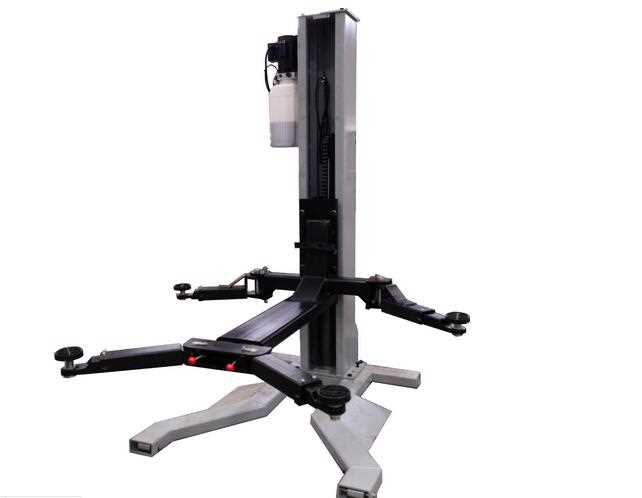

Quick Details
Description
Model NO.: JZJ-MAX-1529
Lifting Capacity: 2.5T
Certification: CE, ISO
Condition: New
Design: Single Post
Specification: CE, ISO
HS Code: 8425429000
Type: One Cylinder Hydraulic Lift
Driving Type: Hydraulic
Driving Motor Number of Mechanical Lift: 1
Brand: Jingzhongjing/Jzj
Trademark: JingZhongJing/JZJ
Origin: Yancheng, Jiangsu
| Lifting capaticy |
2700kg |
| Lifting height |
1800mm |
| Overall height |
2516mm |
| Lifting time |
55-60s |
| Motor power |
2.2KW, 3.0KW |
| Power supply |
220V/240V 1Ph / 380V/400V/415V, 3Ph 50Hz/60Hz |
| Rated oil pressure |
18Mpa |
| Noise level |
70dB |
| Weight |
755kg |
| Packing size |
2550x480x750mmx1pcs/770x265x320mmx2pcs |
Features
1. 2700kg lifting capacity.
2. Mechanical lock release.
3. Portable design,very convenient to operate.
4. With aluminum shell motor,with over-heat protection.
5. With 24V safety operation control system.
6. With 24 height limit switch.
7. With screw type support and height support,adjustable.
8. Pass 115% dynamic and 150% static loading test.
9. CE approved.
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.
We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.
Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.
Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.
Welcome the customers from China and all over the world to join us!
