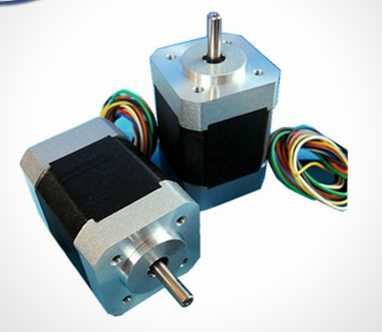

• 24V 42mm 4000 Rpm Brushless DC Motor

24V 42mm 4000 Rpm Brushless DC Motor

Application: Universal, Industrial, Household Appliances, Car, Power Tools, Engraving Machine

Product Details

Quick Details

Description



24V 42mm 4000 Rpm brushless Dc Motor

General  Specifications:

Winding type Delta
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max. radial force 28N @ 20mm from the flange
Max. axial force 10N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩMin., 500VDC


Electric Specifications:



Model  JK42BLS01 JK42BLS02 JKBLS03 JKBLS04
Number of poles 8
Number of phase 3
Rated voltage          VDC 24
Rated speed            RPM 4000
Continuous stall torque  N.m 0.075 0.15 0.22 0.3
Rated torque           N.m 0.0625 0.125 0.185 0.25
Rated power            W 26 52.5 77.5 105
Peak torque            N.m 0.19 0.38 0.56 0.75
Peak current           A 5.4 10.6 15.5 20
Line to line resistance    ohms 1.8 0.8 0.55 0.28
Line to line inductance   mH 2.6 1.2 0.8 0.54
Torque constant         Nm/A 0.035 0.0355 0.036 0.0376
Back E.M.F             V/KRPM 3.66 3.72 3.76 3.94
Rotor inertia            g.cm2 24 48 72 96
Body length             mm 41 61 81 100
Mass                   Kg 0.3 0.45 0.65 0.8


Applications:

Used for robots stepper motor,

Electronic automatic equipment stepping motor,

Medical instrument stepping motor,

Advertising instrument stepper motor,

Lighting& audio equipment stepper motor,

Printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

Company Show:

Depending on advanced technology and knight service,our JKONGMOTOR & Electric Appliance CO.,LTD has established a excellent team and maintain a good  business relationship with a large amount of clients in global market.



24V 42mm 4000 Rpm Brushless DC Motor

Company Profile

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
