Quick Details
Description
Place of Origin: Shandong, China (Mainland) Brand Name: huanuo Model Number: HSNZ Lift Mechanism: Articulated Lift Lift Drive / Actuation: Hydraulic Power: 2.2kw Rated Loading Capacity: 200kg Min. Lifting Height: 1.98m Max. Lifting Height: 18m Table Size: 800*800mm Overall Dimensions: 1.35 X0.8 X1.98m Weight: 1700kg Certification: CE ISO Warranty: 12 Months After-sales Service Provided: Engineers available to service machinery overseas Color: Customers' Requirements table-board: diamond plate Lifting speed: 3-6m/min
Packaging & Delivery
Packaging Details: 200kg 16m welding steel folding mounted boom lift packing inside with plastic film, outside be packed in wooden cases.
Delivery Detail: Shipped in 7 days after payment

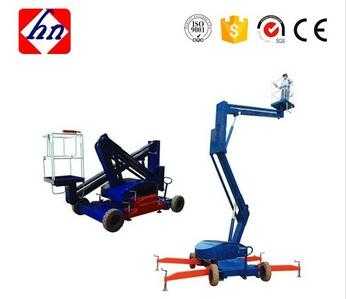

200kg 16m welding steel folding mounted boom lift
Introduce
It is used for maintenance or aerial work,can also move a short distance.
One person drive and another person operate on the platform.
It can move upside and down automatically,be operated both in the up basket and down drive seat
Advantages
Two sources of power:Storage battery and Diesel engine.And the storage battery works without noise.
With four full-automatic hydraulic legs,it can be more stable.
Boom rotation 360°,so it can work across the barriers.
Jinan Huashinuo CNC Machinery Co.,Ltd is a company which is the leading manufacturers of scissors lift tables. Which is used for logistics, warehouse, factory and construction.as the biggest producer in making aerial work platform, cylinder hydraulic aerial work platform, boom lift and dock leveler,We have experience for over 20 years and gained conciderable experience and have developed the design.
With our long experience in scissors lift supply we can understand your needs as well as the particular demands of your application. This means that we can supply a lift table constructed to meet your requirements in both the long and the short term. A lager part of our production is custom design tables suited for a particular working situation.
Knowing the methods of working will constantly develop,we try to build in as much flexibility as possible into the lift design. There is an advantage in not having to change the lift table when the working practice changes.
At our engineering department the lifts are designed and developed using modern computer technology. With this facility we can easily make individual custom designs.
Reliability and personal safety
Another advantage of the our lift is attention to personal safety. The lift tables are logically built,easy to operate and designed and equipped with various safty safety features to minimise the risk of personal injury.
Examples of the safety details are the downward trip frame mounted all around the underside of the platform which stops the downward movement when touched. House rupture valves fitted into each hydraulic cylinder prevents uncontrolled decent in case of failure in the hydraulic circuit. All sheer ponts have been designed to have sufficient clearance to eliminate any risk of entrapment.
