Quick Details
Description
Place of Origin: Shandong, China (Mainland) Brand Name: huanuo Model Number: HSN4-100 Lift Mechanism: Lift Chain Lift Drive / Actuation: Hydraulic Power: 0.75kw Rated Loading Capacity: 100kg Max. Lifting Height: 4m Table Size: 0.60*0.60m Overall Dimensions: 1.28*0.80*1.98m Weight: 250kg Certification: CE ISO Warranty: 12 Months After-sales Service Provided: Engineers available to service machinery overseas Color: Customers' Requirements
Packaging & Delivery
Packaging Details: 0.25ton aluminum motor lift packed in plastic bag inside, outside should be packed in wooden cases.
Delivery Detail: Shipped in 7 days after payment

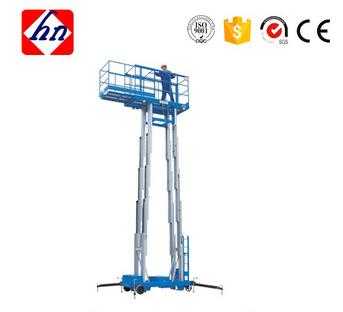

0.25ton aluminum motor lift
Introduce
It is used to convey the goods from one working level to another.
The control panels are available at the designated floors and one the lift platform.
Heavy capacity,platform size and lifting height can be chosen according to your actual needs
Advantages
Installed in the pit,do not occupy space.
When lifting up or down,up,down and stop three buttons control the lift.
Great load capacity,125% capacity load test.skidproof platform.
Sensitive overload protection devices locking device for failing protection.
1.Explosion-proof valves:protect hydraulic pipe,anti-hydraulic pipe rupture
2.Spillover valve:It can prevent high pressure when the machine moves up.Adjust the pressure.
3.Emergency decline valve:it can go down when you meet an emergency.
4.safety bar:when platform decending,if it touch anything,it will be stop,so it can protect goods or persons.
Jinan Huashinuo CNC Machinery Co.,Ltd is a company which is the leading manufacturers of scissors lift tables. Which is used for logistics, warehouse, factory and construction.as the biggest producer in making aerial work platform, cylinder hydraulic aerial work platform, boom lift and dock leveler,We have experience for over 20 years and gained conciderable experience and have developed the design.
With our long experience in scissors lift supply we can understand your needs as well as the particular demands of your application. This means that we can supply a lift table constructed to meet your requirements in both the long and the short term. A lager part of our production is custom design tables suited for a particular working situation.
Knowing the methods of working will constantly develop,we try to build in as much flexibility as possible into the lift design. There is an advantage in not having to change the lift table when the working practice changes.
At our engineering department the lifts are designed and developed using modern computer technology. With this facility we can easily make individual custom designs.
Reliability and personal safety
Another advantage of the our lift is attention to personal safety. The lift tables are logically built,easy to operate and designed and equipped with various safty safety features to minimise the risk of personal injury.
Examples of the safety details are the downward trip frame mounted all around the underside of the platform which stops the downward movement when touched. House rupture valves fitted into each hydraulic cylinder prevents uncontrolled decent in case of failure in the hydraulic circuit. All sheer ponts have been designed to have sufficient clearance to eliminate any risk of entrapment.
