Quick Details
Description
1. Put O-rings on the plastic plungers with lubricant(the middle plunger should be paired with O-O-ring).
2. Install the plungers into the holes of the dispenser.
3. Fix the stainless steel plunger with the stainless steel handle through the holes on dispenser door and
screw tight.
4. Fix the design cover on the bottom of the dispenser.
5. Fix the dispenser door assembly on the machine and fasten it with screws using the spanner. Please
DO NOT lubricate the seal of the dispenser door
6. Fix the plastic handles onto the stainless ones

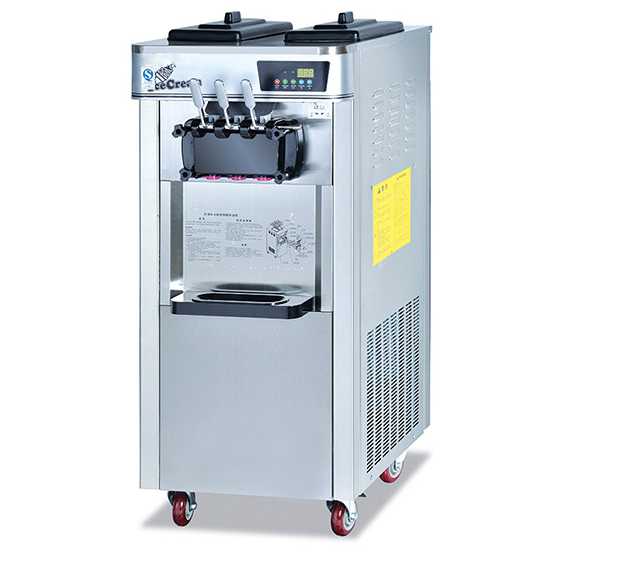

can make two pure flavors and One mixture flavors in one time
1. Put the initiative and driven gear into the air pump shell.
2. Put seal on the air pump cover, cover with the shell and screw with attaching bolts.
3. Install rubber plug, spring, O-ring and sucking tube on the bottom of the air pump sequently
4. Install two O-rings on the back of the air pump and one O-ring at the front.
5. Install O-ring on the connect bolt, and assemble the bolt inside the hole in the front of the
air pump.
6. Install O-ring on the tube, and connect the two connect bolts with the tube.
Rudong Jiahua Food Machinery Co., Ltd. is located in Nantong District in the center of Yangtze River Delta and is near Ningtong Expressway and No.204 National Highway. We are only 30km from Nantong Airport. Due to our advantageous location, our company enjoys convenient water, land and air transportation. Our company is constantly improving our high level technicians and always developing and innovating. Since our engagement in the production of food machines 15 years ago, so far, our company has brought forth the B series food mixers, SH Double-working and Two-speed flour mixing Machines and curing equipment. Our company is also designing and making various kinds of spare parts for customers according to customers' demands and we have also been praised by users in all circles of the society.
Our company will constantly develop various kinds of food machines and repay the customers' deep love with high quality, low price and excellent service.
