shrink labeling machine
Type: Labeling Machine Condition: New Application: Beverage, Chemical, Commodity, Food, Medical Packaging Type: Bottles Packaging Material: Glass, Metal, Plastic, Wood Automatic Grade: Automatic Driven Type: Electric Voltage: 220V or 380V Power: max 3kw Place of Origin: Shanghai, China (Mainland) Brand Name: Taoshan Model Number: TS 200P Dimension(L*W*H): 1000 mm Lx 860 mm W x 1800 mm H Weight: 700kgs After-sales Service Provided: Overseas third-party support available
Quick Details
Description

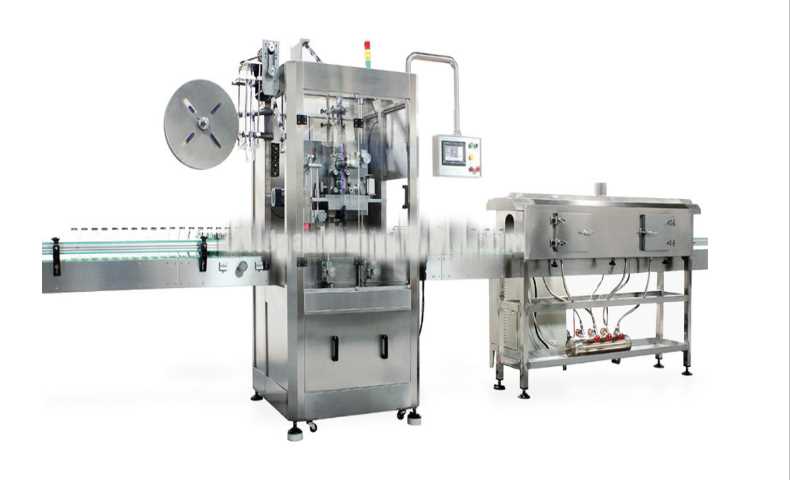

Automatic Sleeve Labeling Machine
1. Technical Parameter:
A. Specification
(1) Main machine:1000 mm L* 860 mm W * 1800 mm H
(2) Weight:approximately 700kgs
(3) Diameter of bottle:ψ25~ψ50m/m,ψ50~ψ95m/m,ψ95~ψ125m/m, one dimension to be chose from three options, special specification can be made to meet customer’s demands.
(4) Shrink label cut length:25mm ~ 280mm
(5) Inner core:5” to 10"
(6) Speed:max 150BPM (label height100 mm)
(7) Voltage:3 phase / 220V or 380V
(8) Consumption Power:3KW
|
1.label unwind one set
|
8.DrivingSection one set
|
|
2. Bottle Hugger System one set
|
9.Adjustable Knife Plate one set
|
|
3.feeding device one set
|
10.label brushing one set
|
|
4. Fork Photo Sensor one set
|
11. Auto up/Down Table one set
|
|
5. Mandrel one set
|
12.Interface Control unit one set
|
|

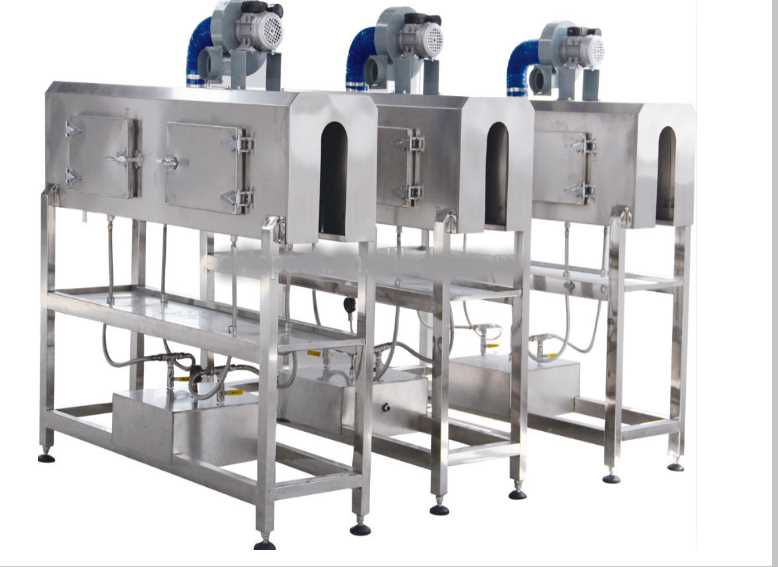

6. Shrink Tunnel one set
|
13.brush section one set
|
|
7. Conveyor one set
|
14.Protection hood one set
|
2. Electrical list
|
Items
|
Name
|
Brand
|
|
1
|
interface
|
Kinco
|
|
2
|
Current protector
|
Schneider
|
|
3
|
Electromagnetic contactor
|
Schneider
|
|
4
|
Relay
|
Omron
|
|
5
|
Button
|
Schneider
|
|
6
|
PLC
|
Panasonic
|
|
7
|
Inverter
|
Panasonic
|
|
8
|
Motor
|
Panasonic
|
|
9
|
Motor
|
TWT
|
|
10
|
bearing
|
NSK
|
Other kinds of labeling machines:
1. Packing: wooden case with strong seaworthy packing suitable for exporting.
Packing Size: 2900 x 1600 x 1700mm;
Net Weight: 500kgs;
Gross Weight: 580kgs.
2. Shipping: By sea or air.
1. All machines of Shanghai Taoshan have a warranted period of 12 months from the date of supply against any manufacturing defects.
2. And our customers can get help from us at any time in any of the following manners:
1) Send email to us or call us;
2) Use live video, audio to contact Shanghai Taoshan to get online help;
3) Invite technician of Shanghai Taoshan to visit customer’s place for troubleshooting.
