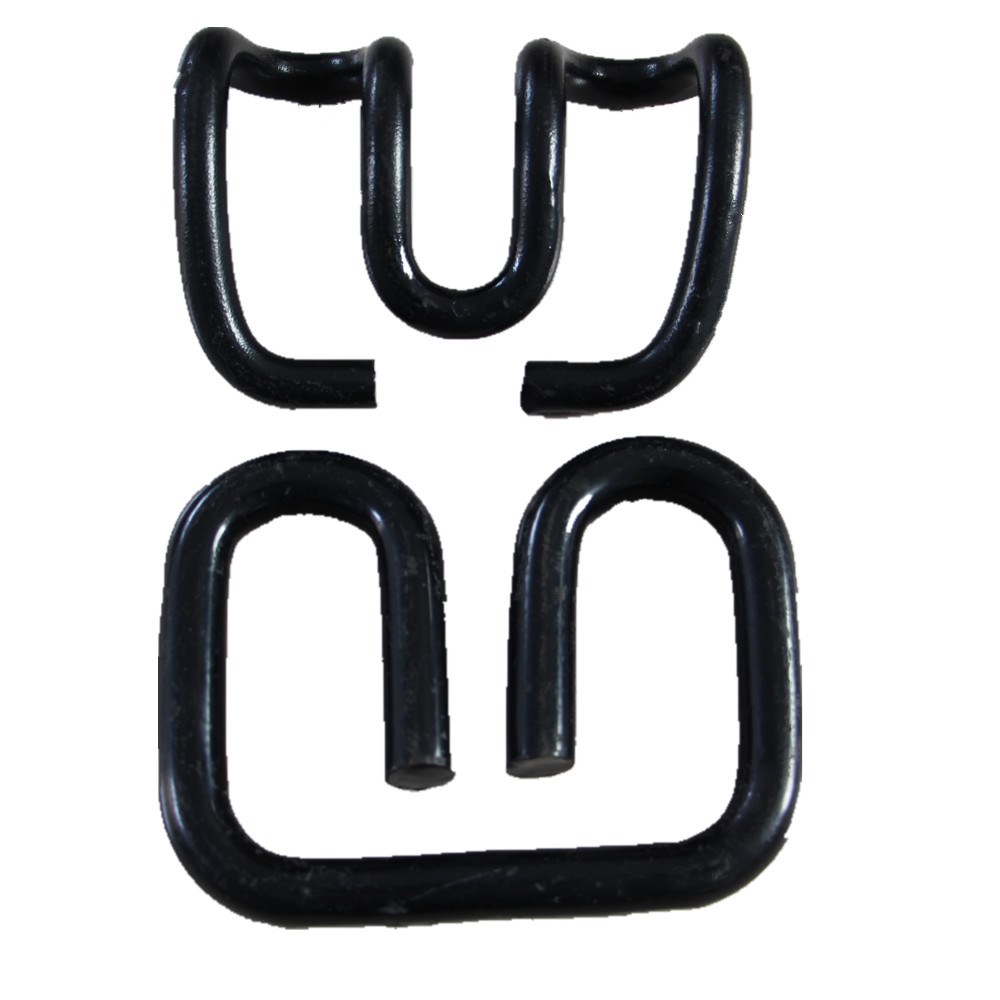

railway clip for railroad fastener in railway equipment /elastic clip for the rail
1. E type Railway fastening system:
E clip, Insulator, Shoulder, Rail pad.
2. Vossloh type Railway fastening system:
Tension clip: SKL14, SKL12, SKL1, SKL3
Spike, Plain washer, Plastic dowel, Guide Plate.
3. Nabla Railway fastening system :
Nabla clip, Insulator, double end screw spike, Special spring washer, Hex nut, Plainwasher.
4. KPO type Railway fastening system:
KPO clip, Hs bolt, Hex nut, Double coil spring washer, Screw spike, Base plate.
5. Railway Gauge Lock Clip
Railway Gauge Lock Clip, Screw Spike
6. Railway Deenik Clip
Deenik Clip, Shoulder, Insulator.
Specificaitons:
|
Brand |
yichen |
|
Name |
Deenik Clip / Railway Clip/ Rail clip / Elastic Rail clip / Tension clamp / Rail clamp |
|
Type |
e2055, e2009 e1817, e1809, e1609, PR401, PR309, PR601, SKL1, SKL3, SKL12, SKL14, Nabla clip, gauge lock clip |
|
|
Or according to customers’ Drawing or Sample. |
|
|
|
|
Material |
60Si2MnA |
60Si2CrA |
55Si2Mn |
38Si7 |
|
Chemical composition(%) |
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 |
C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 |
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 |
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
|
Hardness |
For e clip: 44-48HRC |
|
For skl clip: 42-47HRC |
|
Fatigue life |
for Dia.18 is 3 millions cycles without breaking |
|
for Dia.20 is 5 millions cycles without breaking |
|
Surface |
plain (oiled), Oxide black, color painting |
|
Standard refers |
DIN17221, BS970, GB/T1222 |
|
