polymer insulator

Our polymer insulator has provided insulation and necessary creepage distance, to ensure the composite post insulator running long-term and safety in the atmosphere environment. Please contact us! Email:

liujing@mec.com.cn

Send Inquiry Add to My Favorites

Product Details

Quick Details

Description

Skype: liujingmec

liujing@mec.com.cn

Feature & description of polymer insulator

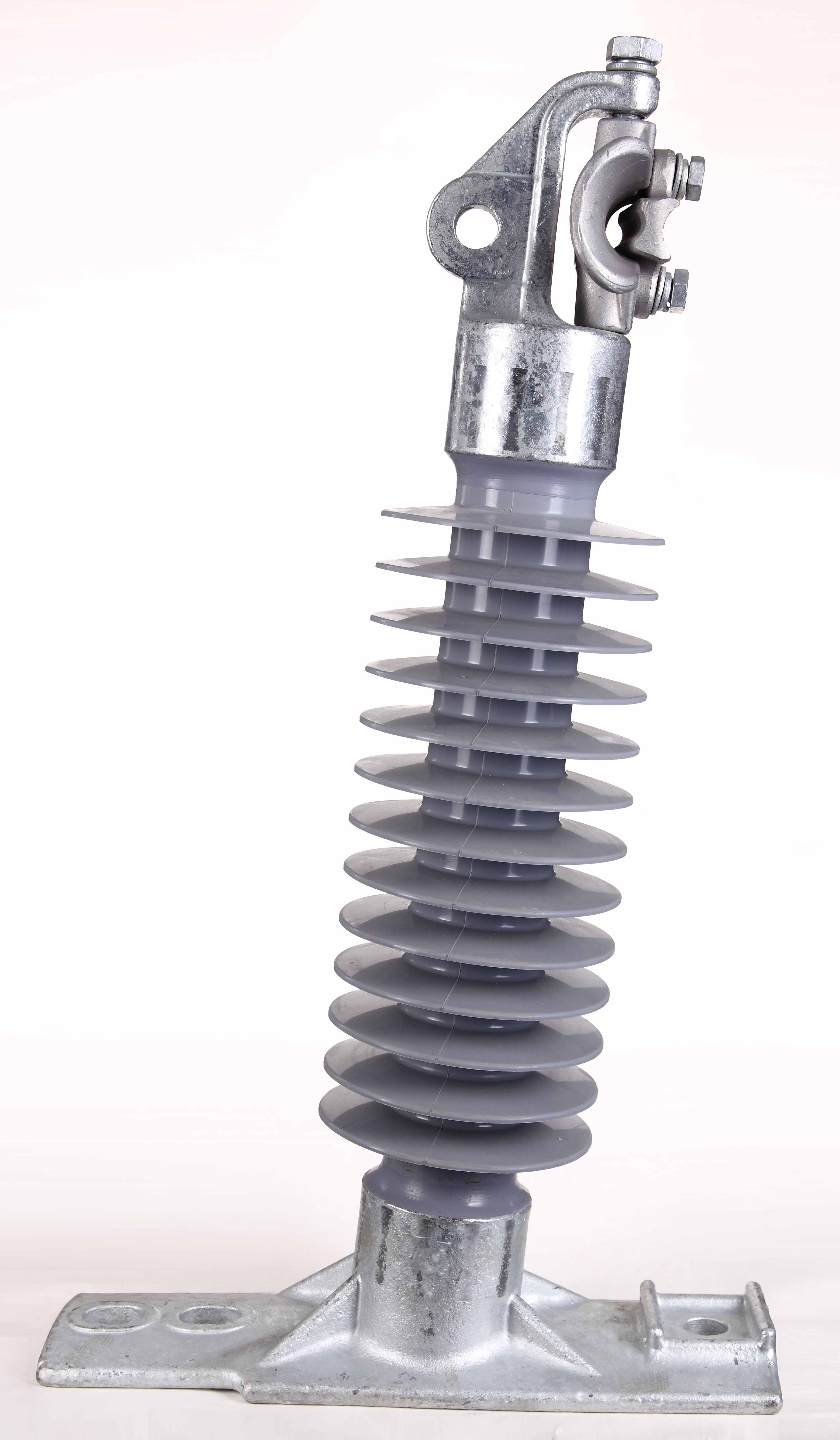

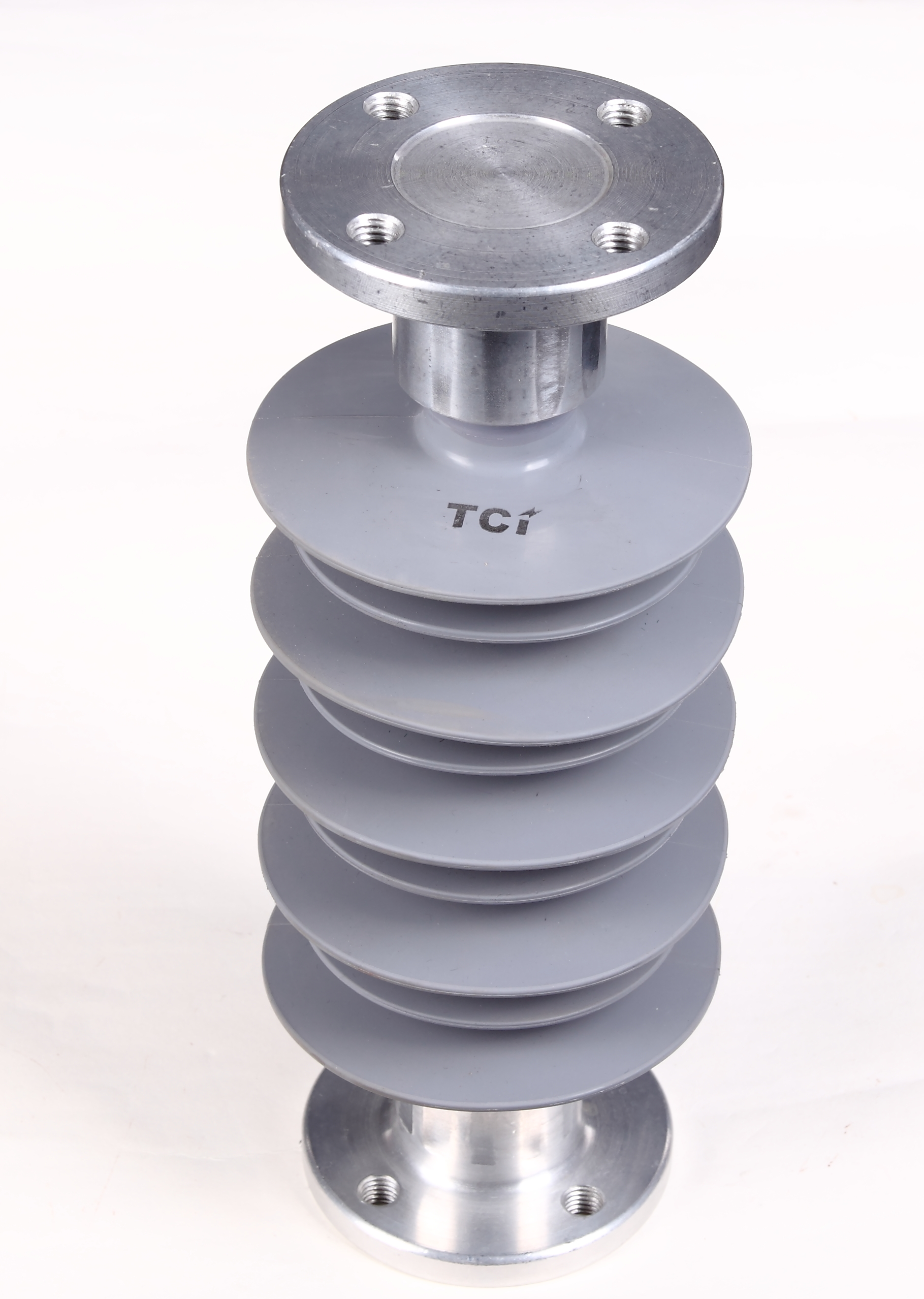

• Composite Post Insulator with Porcelain Core is consist of porcelain core, sheds and metal fitting. The inner insulation is made of high-strength porcelain by isostatic pressing processing technology, and bear the whole mechanical load in the running. Shed is made of composite material and the raw material is silicone rubber by the high-temperature injection technology.
• polymer insulator has provided insulation and necessary creepage distance, to ensure the composite post insulator running long-term and safety in the atmosphere environment. When the porcelain insulator breaks due to the brittleness, the wrapping to porcelain core by shed can reduce the harmful influence to the workers at working site and other electrical equipments around.

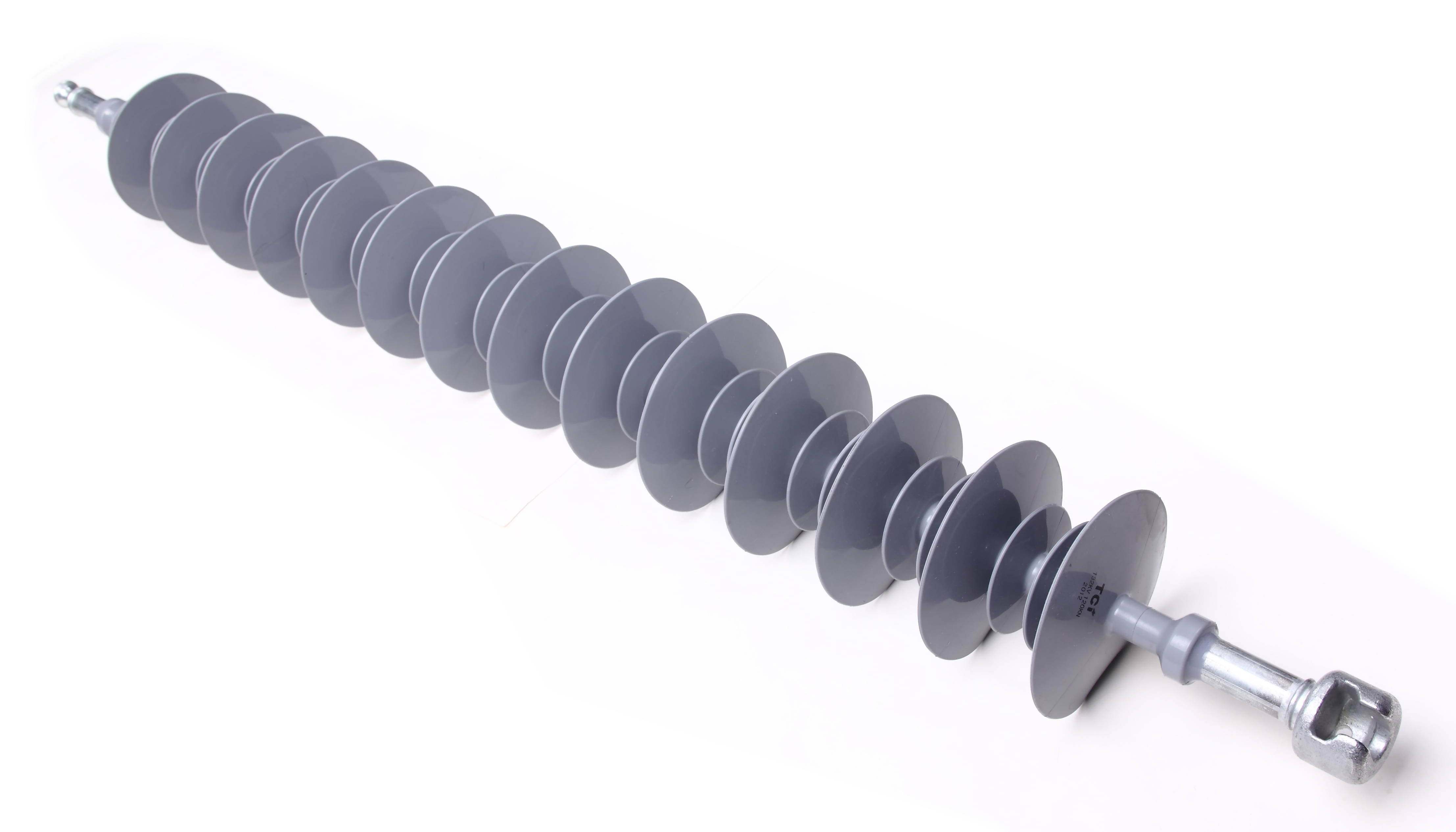

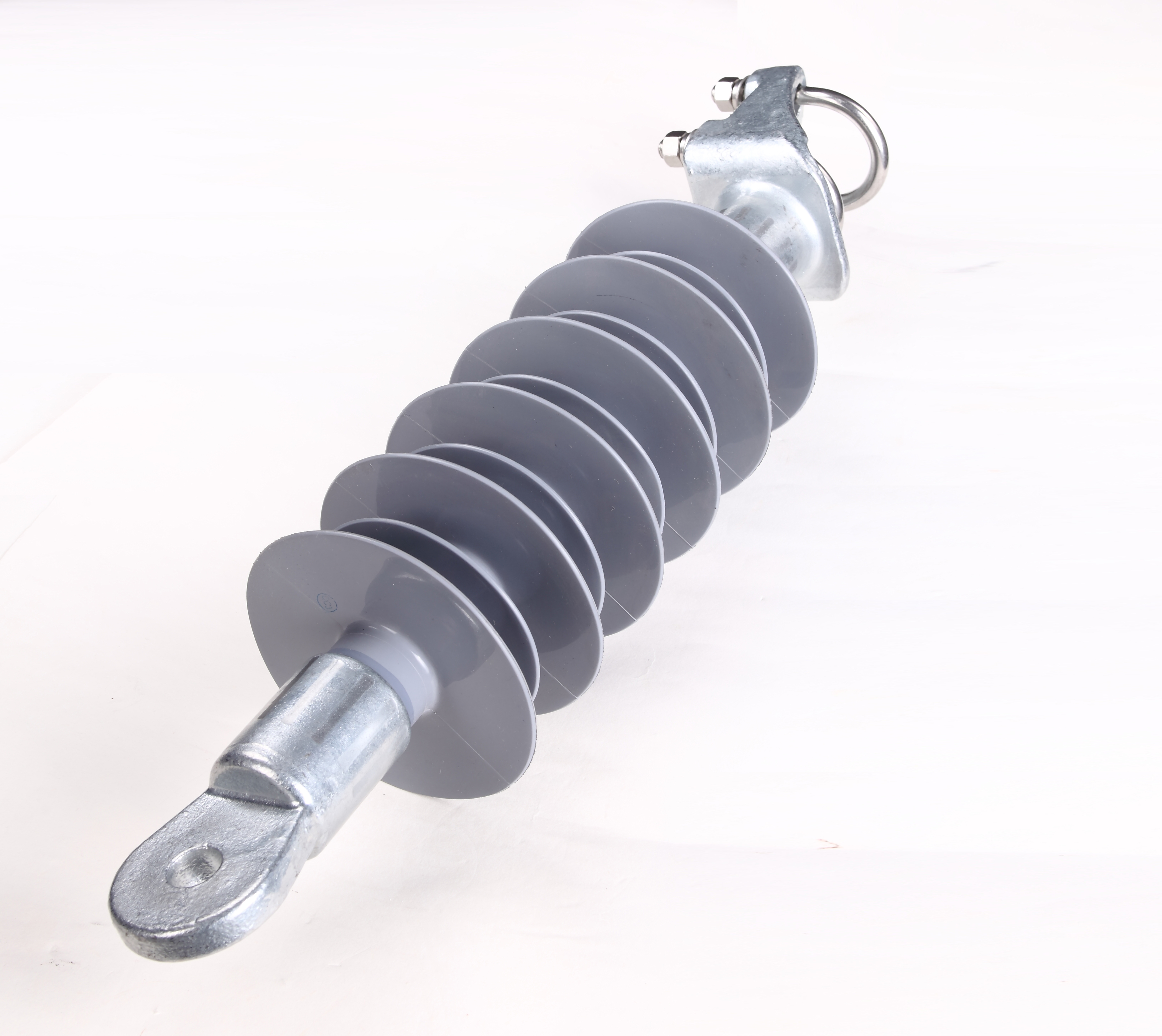

General dimension and characteristics of 10kv suspension composite insulator

No.	Fig.	Type	Rated voltage KV	Specified mechanical load KN	Socket and ball size	Section height H, mm	Min arcing distance h, mm	Shed diameter D, mm	Min nominal creepage distance L, mm	Lighting impulse withstand voltage	Wet power frequency voltage	Weight kg
1	1	FXBW-10/70-WT	10	70	16	319±	159	92	415	95	60	1.6
2	2	FXBW-10/70-DT	10	70	16	312±	159	92	415	95	60	1.1
3	3	FXBW-10/70-UD-1	10	70	/	342±	155	150	400	95	60	1.6
4	4	FXBW-10/70-WD	10	70	16	322±	159	92	415	95	60	1.6
5	5	FXBW-10/70-UD-2	10	70	/	318±	159	92	415	95	60	1.5
6	6	FPW-10/3	10	3(Curve)	/	200±	130	140	380	95	40	1.6

General dimension and characteristics of 35KV~66KV AC composite insulator

No.	Type	Rated voltage KV	Specified mechanical load KN	Socket and ball size	Section height H, mm	Min arcing distance h, mm	Large shed diameter D, mm	Small shed diameter d, mm	Shed spacing B, mm	Min nominal creepage distance L, mm	Lighting impulse withstand voltage	Wet power frequency voltage	Weight kg
1	FXBW3-35/70	35	70	16	610±15	430	130	95	45	1050	230	95	2.2
2	FXBW4-35/70	35	70	16	650±15	450	130	95	45	1050	230	95	2.3
3	FXBW3-66/70	66	70	16	870±15	700	128	98	117	1050	410	185	3.5
4	FXBW4-66/70	66	70	16	940±15	760	128	98	117	1050	410	185	3.8

General dimension and characteristics of 110KV composite insulator

No.	Type	Rated voltage KV	Specified mechanical load KN	Socket and ball size	Section height H, mm	Min arcing distance h, mm	Large/small shed diameter D/d mm	Shed spacing B, mm	Dia. of corona ring D1,	Min nominal creepage distance L, mm	Lighting impulse withstand voltage	Wet power freq. Vol.	Weight kg
									mm
1	FXBW3-110/70	110	70	16	1180±15	1000	162/86	95	250	3150	550	230	5.0
2	FXBW4-110/70	110	70	16	1240±15	1000	162/86	95	250	3150	550	230	5.0
3	FXBW3-110/100	110	100	16	1180±15	1000	162/86	95	250	3150	550	230	5.0
4	FXBW4-110/100	110	100	16	1240±15	1000	162/86	95	250	3150	550	230	5.0
5	FXBW3-132/80	132	80	16	1320±15	1160	160/94	87	250	3960	650	230	5.0
6	FXBW4-132/80	132	80	16	1500±15	1340	160/94	87	250	4360	650	230	5.5
7	FXBW4-132/80	132	80	16	1695±15	1540	160/94	87	250	5600	650	230	6.0
8	FXBW3-132/120	132	120	16	1747±15	1540	160/94	87	250	5600	650	230	6.5
9	FXBW3-132/160	132	160	20	1894±15	1630	160/94	87	250	5500	650	230	7.5

General dimension and characteristics of 220KV composite insulator

No.	Type	Rated vol. KV	Spe.. mechanical load KN	Socket and ball size	Section height H, mm	Min arc. dis. h, mm	Lar./Sma shed diameter D, mm	Shed spacing B, mm	Dia. of corona ring D1/D2, mm	Min nominal creep. dis. L, mm	Lighting impulse withstand voltage	Wet power frequency voltage	Weight kg
1	FXBW3-220/100	220	100	16	2150±30	1900	162/86	95	250/305	6300	1000	395	9.5
2	FXBW4-220/100	220	100	16	2240±30	1900	162/86	95	250/305	6300	1000	395	9.5
3	FXBW3-220/160	220	160	20	2150±30	1900	171/85	79	250/305	6300	1000	395	13
4	FXBW4-220/160	220	160	20	2240±30	1900	171/85	79	250/305	6300	1000	395	13
5	FXBW4-220/120	220	120	16	2190±30	2030	160/94	87	250/305	7200	1000	395	10
6	FXBW5-220/160	220	160	20	2190±30	2220	160/94	87	250/305	6360	1000	395	14
7	FXBW6-220/160	220	160	20	2240±30	1900	160/94	87	250/305	7200	1000	395	15

General dimension and characteristics of 330KV composite insulator

No.	Type	Rated Vol. KV	Spec. Mech. load KN	Socket and ball size	Section height H, mm	Min arcing distance h, mm	Lar/Sma shed dia. D/dmm	Shed Spacing B, mm	Dia. of corona ring D1,D2	Min nominal creepage dis. L, mm	Lighting impulse withstand volt.	Wet Switch Impulse Volt.	Wet power freq. volt.	Weight Kg
									mm
1	FXBW3-330/100	330	100	16	2930±40	2600	171/85	79	400	9075	1425	950	570	15
2	FXBW4-330/100	330	100	16	2990±40	2600	171/85	79	400	9075	1425	950	570	15
3	FXBW3-330/160	330	160	20	2930±40	2600	17185	79	400	9075	1425	950	570	18
4	FXBW4-330/160	330	160	20	2990±40	2600	171/85	79	400	9075	1425	950	570	18
5	FXBW3-330/210	330	210	20	2930±40	2600	171/85	79	400	9075	1425	950	570	18
6	FXBW4-330/210	330	210	20	2990±40	2600	171/85	79	400	9075	1425	950	570	18

No.	Type	Rated Vol. KV	Spec. Mech. load KN	Socket and ball size	Section height H, mm	Min arcing distance h, mm	Lar/sma shed dia. D/d,mm	Shed Spacing B, mm	Dia.of corona ring D1,D2 mm	Min nominal creepage dis. L, mm	Dry Lighting withstand volt.	Wet Switch Impulse Volt.	Wet power freq. volt.	Weight kg
1	FXBZ-±500/160-1	±500	160	20	5440±50	5000	174/88	79	400	18025	+2550	+1550	+600	33
2	FXBZ-±500/160-2	±500	160	20	6290±50	5600	174/88	79	400	21000	+2750	+1650	+650	38
3	FXBZ-±500/160-3	±500	160	20	6800±50	6200	174/88	79	400	23000	+2950	+1750	+700	45
4	FXBZ-±500/180-1	±500	180	20	5440±50	5000	174/88	79	400	18025	+2550	+1550	+600	33
5	FXBZ-±500/180-2	±500	180	20	6290±50	5600	174/88	79	400	21000	+2750	+1650	+650	38
6	FXBZ-±500/180-3	±500	180	20	6800±50	6200	174/88	79	400	23000	+2950	+1750	+700	45
7	FXBZ-±500/210-1	±500	210	20	5440±50	5000	174/88	79	400	18025	+2550	+1550	+600	33
8	FXBZ-±500/210-2	±500	210	20	6290±50	5600	174/88	79	400	21000	+2750	+1650	+650	38
9	FXBZ-±500/210-3	±500	210	20	6800±50	6200	174/88	79	400	23000	+2950	+1750	+700	45
10	FXBZ-±500/240-1	±500	240	20	5440±50	5000	174/88	79	400	18025	+2550	+1550	+600	33
11	FXBZ-±500/240-2	±500	240	20	6290±50	5600	174/88	79	400	21000	+2750	+1650	+650	38
12	FXBZ-±500/240-3	±500	240	20	6800±50	6200	174/88	79	400	23000	+2950	+1750	+700	45
13	FXBZ-±500/300-1	±500	300	24	5440±50	5000	190/110	89	400	18025	+2550	+1550	+600	34
14	FXBZ-±500/300-2	±500	300	24	6290±50	5600	190/110	89	400	21000	+2750	+1650	+650	40
15	FXBZ-±500/300-3	±500	300	24	6800±50	6200	190/110	89	400	23000	+2950	+1750	+700	47
16	FXBZ-±500/400-1	±500	400	28	5440±50	5000	190/110	89	400	18025	+2550	+1550	+600	35
17	FXBZ-±500/400-2	±500	400	28	6290±50	5600	190/110	89	400	21000	+2750	+1650	+650	41
18	FXBZ-±500/400-3	±500	400	28	6800±50	6200	190/110	89	400	23000	+2950	+1750	+700	47

General dimension and characteristics of 220kv～500kv composite phase-to-phase spacer

No.	Type	Rated Vol. KV	Spec. Mech. load KN	Bending Withstand Load N,m	Compress Withstand Load KN	Twisting Withstand Load N,m	Section height H, mm	Min arcing distance h, mm	Lar /sma shed dia. D/d,	Shed Spacing B, mm	Dia. of corona Ring D1,D2,	Min arcing distance H, mm	Lighting impulse withstand volt.	Wet power freq. volt.	Weig. kg
									mm		mm
1	FXGB-	220	100	225	7.5	75	2990	2630	174	79	400	7900	1000	395	18
	220/100						±20		/88
2	FXGB-	330	100	245	10.5	75	4640	4280	174	79	400	11800	1425	570	28
	330/100						±30		/88
3	FXGB-	500	120	275	12.5	75	5850	5490	174	79	400	14000	2250	740	31
	500/120						±50		/88

Company Profile

We specialize in the production of primary power equipment, including metal oxide surge arrester（MOA）， polymer housed metal oxide arrester for transmissionlines, metal oxide varistor,on-line monitors for surge arrester and surge arrester monitor and so on.

After 30years technical innovation and industrial transformation, we have yearly production capacity for 4.5 million pieces ofΦ32-128metal oxide varistor (MOV), 0.5 million sets of 0.22-1000KV metal oxide surge arrester.

Our main products have passed ISO9001 quality management system certificate, ISO14001 environment management system certificate, OHS18001 occupational health and safty management system certificate and KEMA Netherland certificate.

Our arrester market share reaches above 32% in China market, especially 500KV surge arrester bid winning rate in the scale bidding of state grid corporation of China in the lastest three years, was the top one during the same industry in China.
