Machine characteristics:
This lathe added multilateral corner cut function (2, 4, 6, 8, 10, or 12 sides); it can machine multilateral flat surface, multilateral cone and multilateral chamfer.
1,The lathe contains mechatronics design, beautiful exterior, and mature product mix. It is easy to be operated, so that one worker can operate multiple lathes at the same time.
2,The lathe bed are made of heavy casting. It have went through at least twice aging quality tests and ultrasonic frequency quenching.
3,X, Z axes contains with high degree of accurate rolling screw mandrel, which is in between structure, make better dynamics and higher precisions.
4,The high precise angular contact ball bearings are used as bearing of the lathe. This gives a optimized combination of high-precision, High bearing capacity, good running speed and more durable.
|

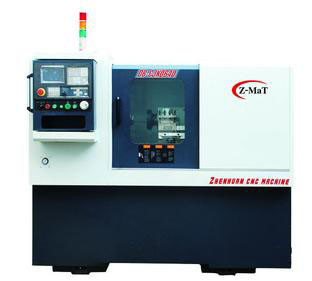

DB-CJK0640 Polygon machine
|
Technical Parameter
|
|
Standard machining diameter
|
100mm
|
|
Max.workpiece length
|
180mm
|
|
X-axis max. stroke
|
200mm
|
|
Z-axis max. stroke
|
180mm
|
|
Spindle diam. of through-hole
|
φ48mm/φ70mm(option)
|
|
Draw pipe diam. of through-hole
|
φ40mm/φ60mm(option)
|
|
Rapid travel speed of X, Z axis
|
6000mm/min,9000mm/min
|
|
Spindle travel speed range
|
200-3000r/min / 200-1600r/min (option)
|
|
Ways of clamping
|
Pneumatic clamping / chuck(option)
|
|
Type of turret
|
4-position electric turret
|
|
Main motor power
|
4.0KW
|
|
Overall dimensions (LXWXH)
|
1920X1120X1550mm
|
|
weight (about)
|
1400kg
|
