Quick Details
Parameter
Display Type : LCD screen with EL backlight
Operating Principle : P-E (pulse-echo), E-E (echo-echo) with dual-crystal probes(Only for UM-2D)
V-Path Correction : Automatic
Repeatability : 0.05mm
Update Rate : 4Hz
Memory Function : 500 readings can be stored in 5 groups
Languages : English and Chinese

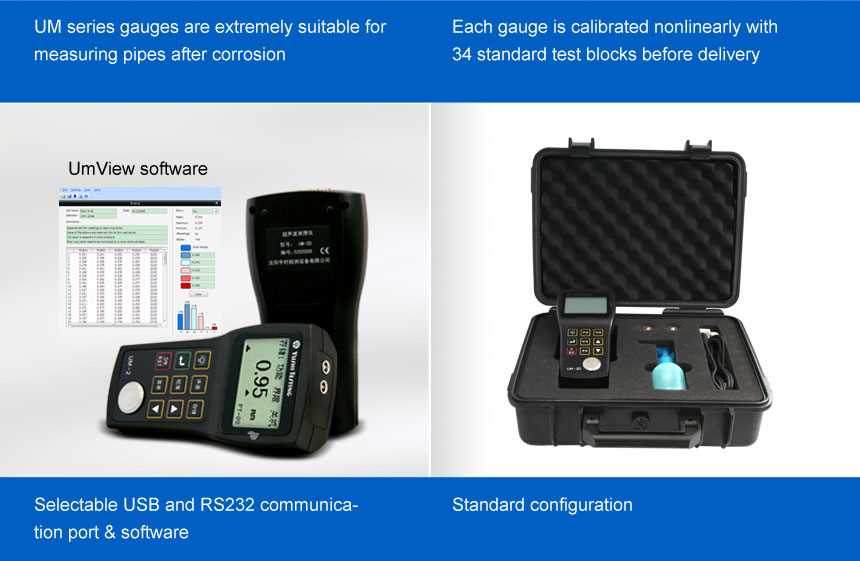

Communication Port : USB or Serial RS232 Port(Optional)
Power : Two 1.5V AA alkaline batteries(Warning with low battery voltage)

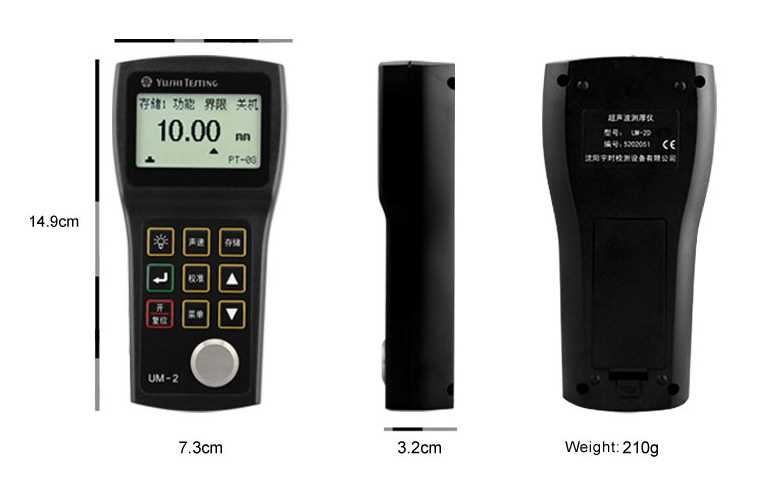

Weight : 200g Include batteries
Description

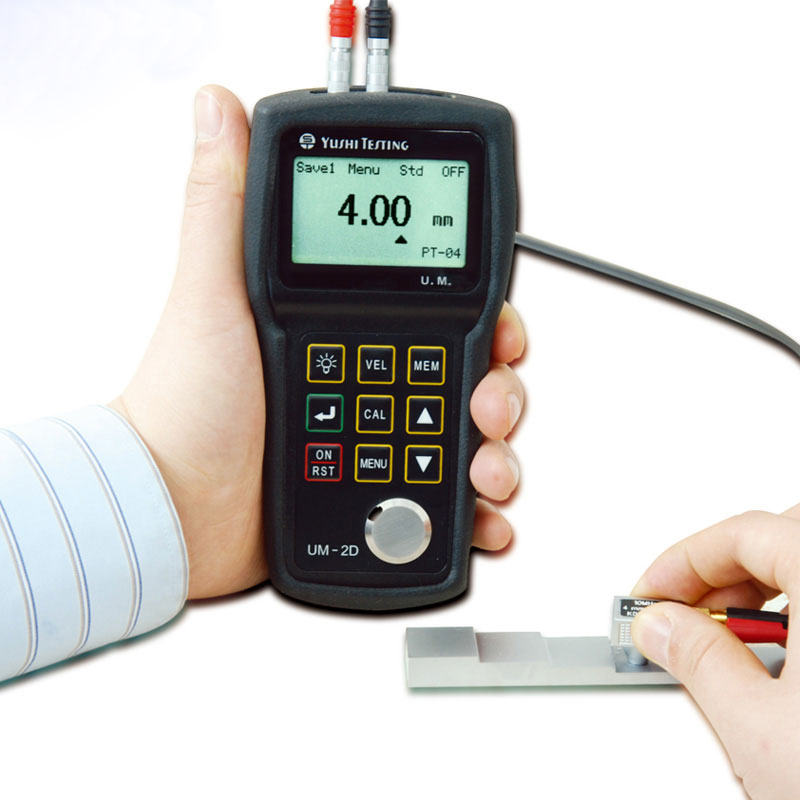

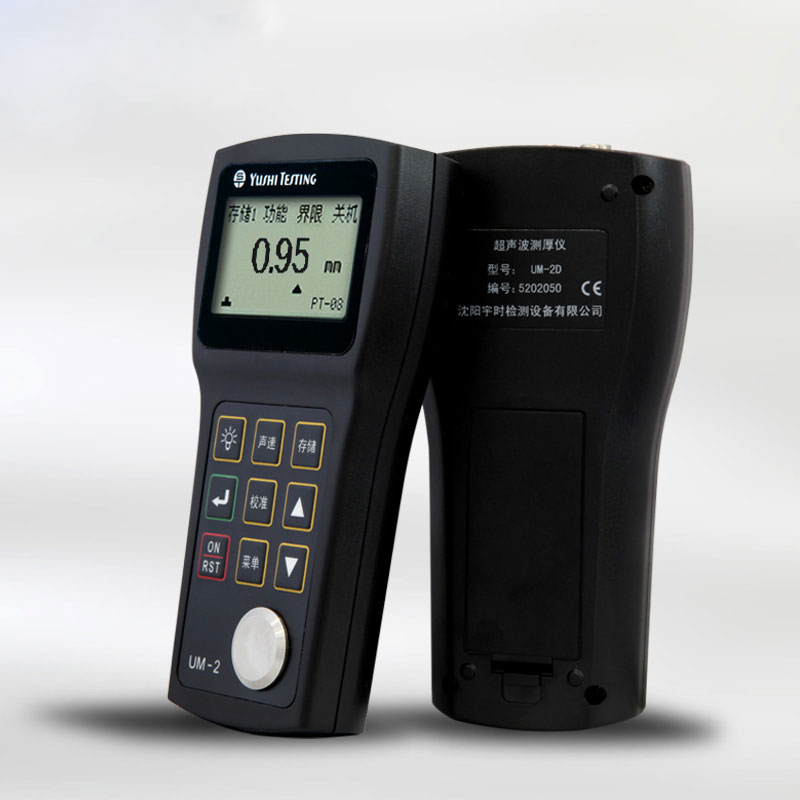

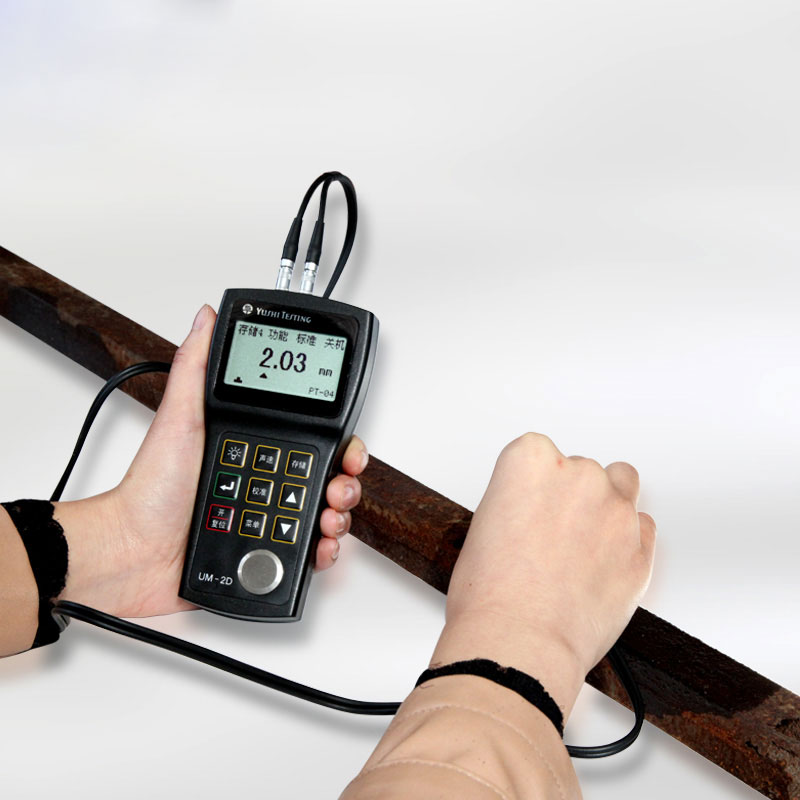

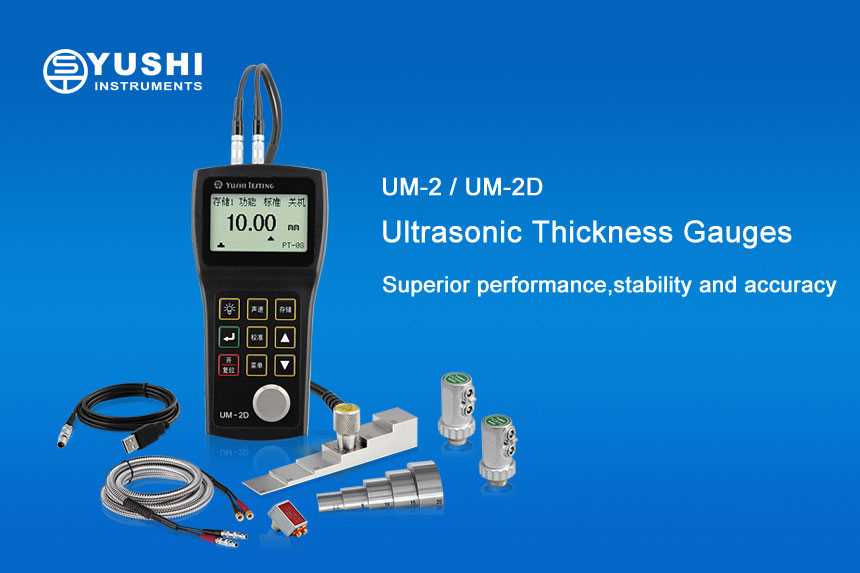

dial ultrasonic thickness gauge um-2d thickness gauge meter for pipes

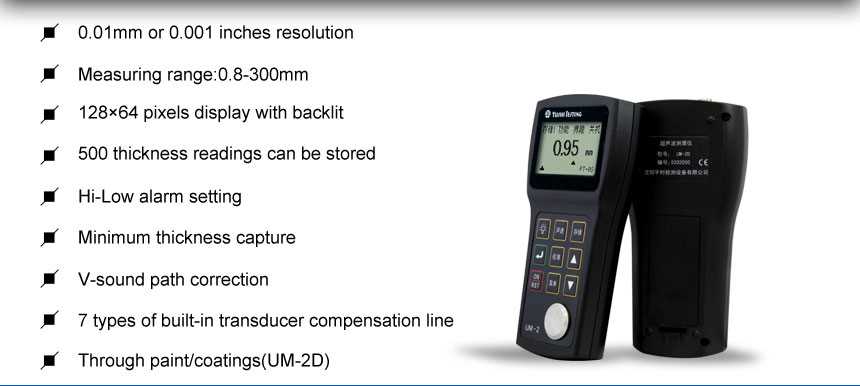

0.01mm/0.001inch Resolution, 500 Thickness Values can be stored, Alarm Mode, Minium Capture, Two-point Calibration, Automatic V-Path Correction and Thru Painting Function etc.
Appliaction

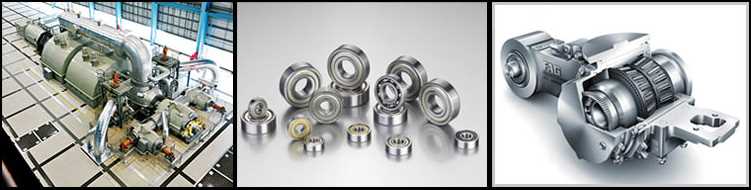

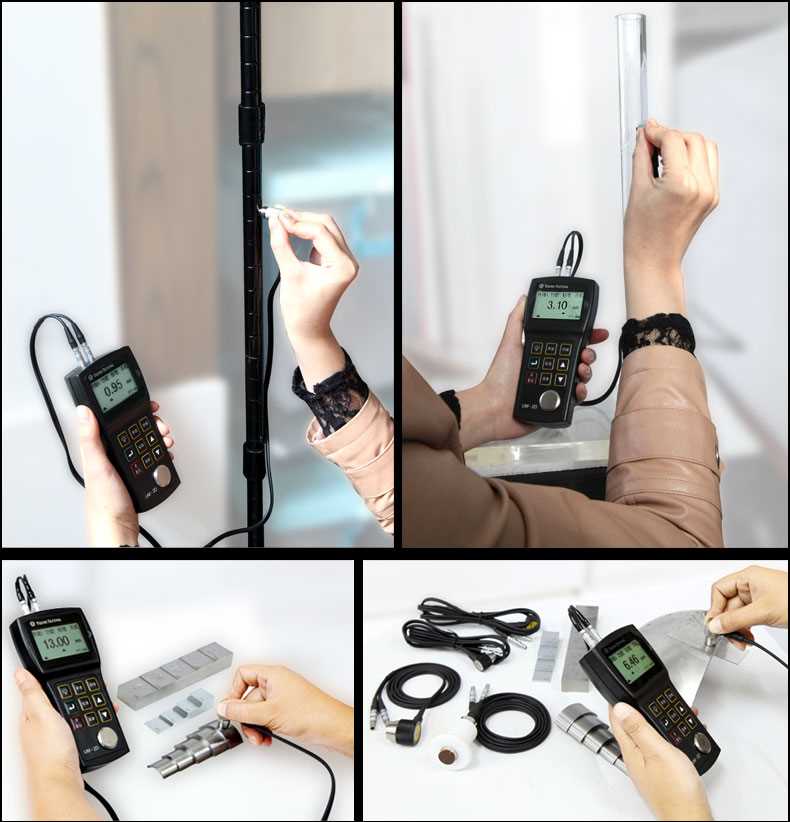

UM-2 series ultrasonic thickness gauges is used for measuring Metal and Nonmetal Materials, include Plastic thickness measurement, Steel/Pipe thickness measurement, PVC thickness measurement and Glass Plates thickness measurement,etc. UM-2D has through coating function.
Feature

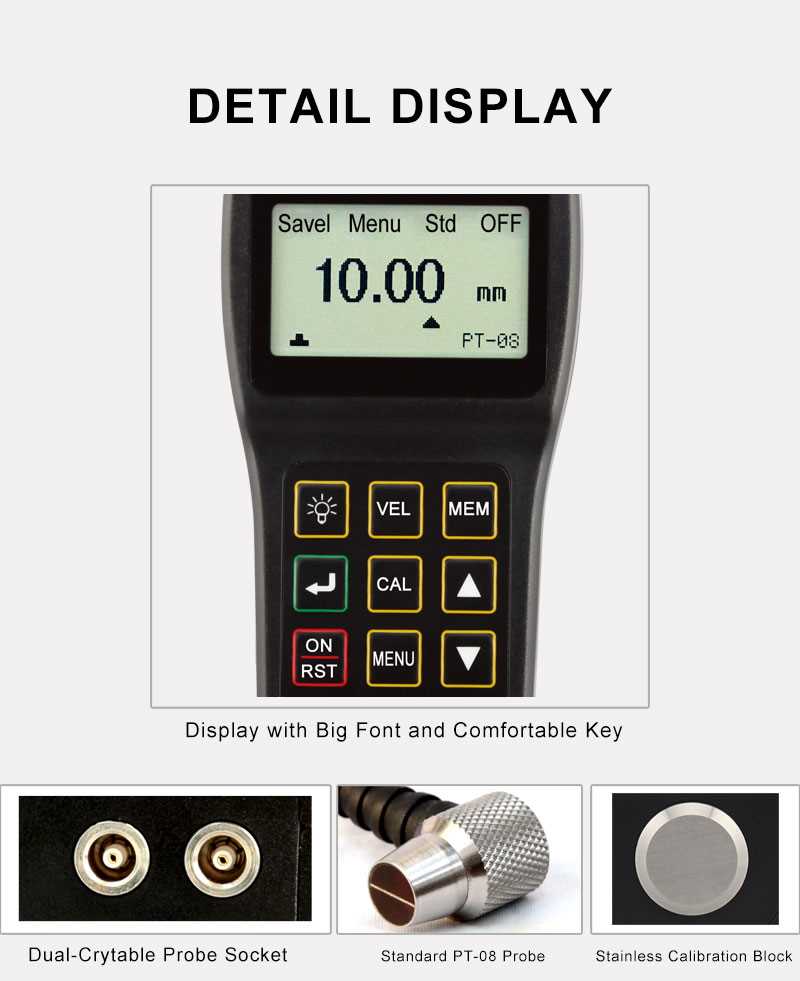

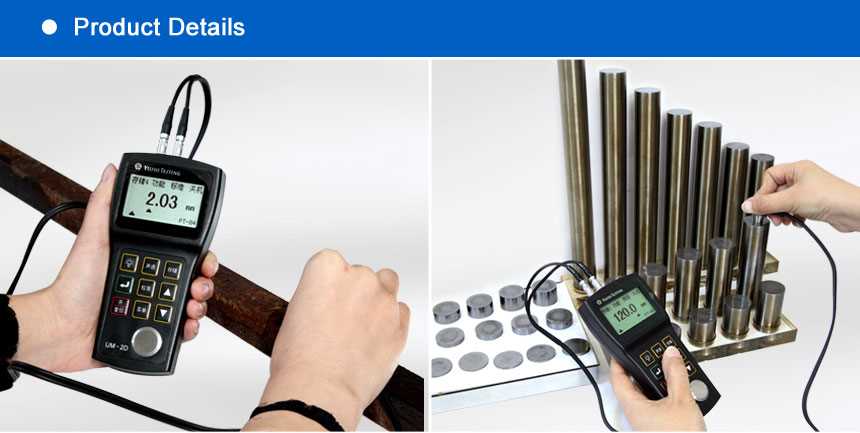

Details
