Quick Details
Description

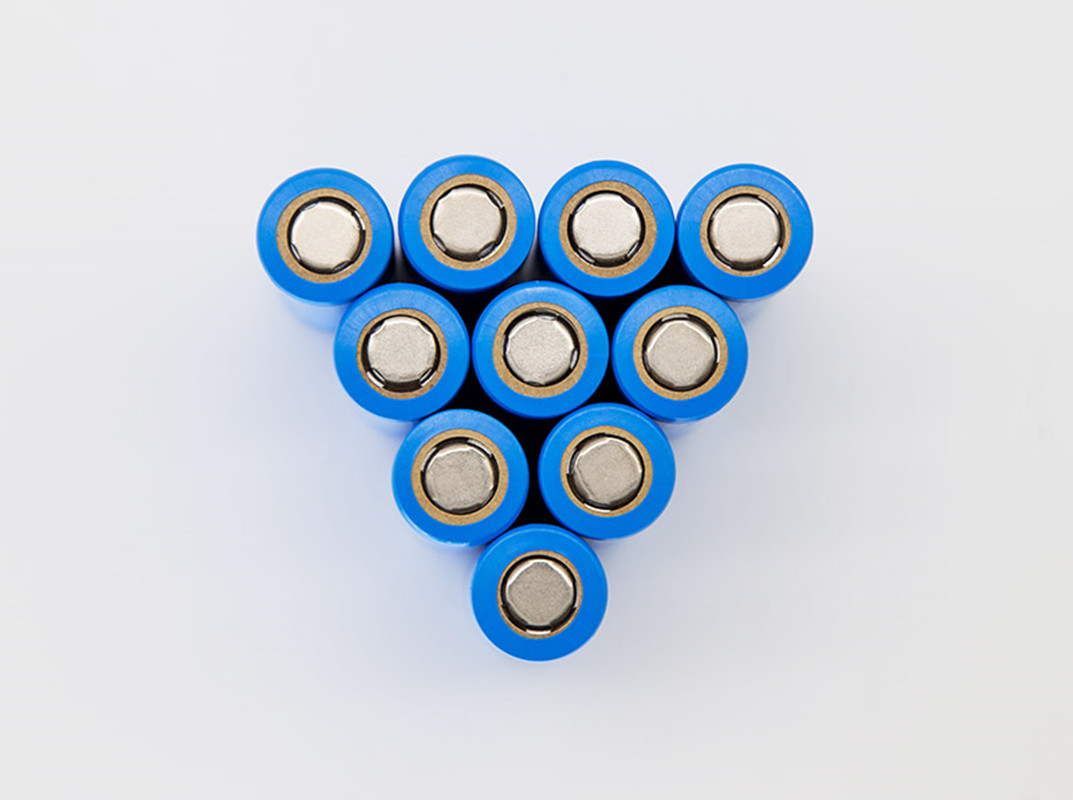

INR18650-1300mAh Li-ion Rechargeable cylindrical battery,power tool cylindrical battery,lithium ion battery for power tool,high-quality lithium-ion batteries
1300mAh Li-ion Battery Product Details:
|
NO.
|
Items
|
Specifications
|
|
1
|
Model
|
INR18650-1300
|
|
2
|
Can Material
|
Ni-Iron
|
|
3
|
Rated Capacity
|
1300 mAh（0.2C5A）
|
|
4
|
Nominal Voltage
|
3.7V
|
|
5
|
Max. Charge Voltage
|
4.2 V
|
|
6
|
Discharge Cut-off Voltage
|
2.75V
|
|
7
|
Max. Charge Current
|
1 C5A
|
|
8
|
Max. Continuous Discharge Current
|
15 C5A
|
|
9
|
Max. Pulse Discharge Current
|
30A （2s pulse ）
|
|
10
|
Max. Diameter（include PVC）
|
≤18.30 mm
|
|
11
|
Max. Height (include PVC)
|
≤65.30mm
|
|
12
|
Weight (Approx.)
|
41.0g
|
|
13
|
Impedance （Max. at 1000Hz、charged status）
|
≤ 18 mΩ
|
|
14
|
Charge Method (CC/CV)
|
Standard
|
0.5 C5A×3hrs
|
|
Quick
|
1 C5A×2.5hrs.
|
|
15
|
Operating Temperature
|
Charge
|
0℃～45℃ 32oF～113oF
|
|
Discharge
|
-10℃～60℃ -4oF～140oF
|
|
Storage
|
-20℃～45℃ -4oF～113oF
|
Characteristic
Without special instructions, the following tests should be done under the condition of : temperature(23℃±3℃), atmospheric pressure (86KPa～106KPa), relative humidity (45%～85%), and the tests should be done within two weeks after receiving the products.
the definitions of some nomenclatures of this specification
standard Charge: Charge with current 0.2C5A to limit charge voltage under the condition of23℃±3℃
surrounding temperature,then change to charge with constant voltage till the current less than or equal to0.02C5A.
Electrical Characteristic of e-bike cylindrical power lithium-ion batteries
|
NO.
|
Item
|
Standard
|
Test Method
|
|
1
|
Discharge rate capabilities
|
A）1 C5A ≥100% B）10 C5A ≥95% C）15 C5A ≥90%
|
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃ and45%～85%RH, then rest for 30mins and discharge at1C5A、5 C5A、10 C5A to the discharge cut-off voltage respectively. Charge/discharge cycle can be conducted for 3times before meeting the Standards（the same below）
|
|
2
|
capacity retention and recovery
|
Residualcapacity≥94％ Recoverablecapacity≥*98％
|
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃， Stored for 28 days, then discharge at 0.2 C5A to 2.75Vmeasuring residual capacity; Then standard charge/discharge measure recoverable capacity.
|
|
3
|
Low Temperature Performance
|
discharge capacity≥85% rated capacityno distortion and no rupture
|
The cell shall be charged in accordance with the standard charge. Then stored in the temperature of -10℃±1℃ for4h, Discharge at the constant current of 0.2C5A down to the end-of-discharge voltage 2.75V.
|
|
4
|
Cycle Life
|
≥300cycles
|
Charge: The cell shall be charged in accordance with RapidCharge condition. rest for 10mins.Discharge: 10C5A discharge to 2.75V, one cycle is finished, then rest for 30mins. Then repeat above steps, when capacity is less than 80% of initial capacity, the battery life is over.
|
Safety Characteristic for 18650 power tool lithium ion battery
|
NO.
|
Item
|
Standard
|
Test Method
|
|
1
|
Overcharge
|
No fire、No explosion
|
After standard charge, rest for 10mins; then charge at constant current of 3C5A to 10V.(or charge at 3C5A for 90mins).
|
|
2
|
Forced discharge
|
No fire、No explosion
|
The battery to be discharged with standard discharging condition, Inverse charge current =1C5A；time: ≥ 90mins
|
|
3
|
Short Circuit test
|
No fire、 No explosion
|
The battery to be fully charged with standard charging condition, and short the positive and negative terminals
with wire resistance ≤50mΩ.Tests are to be conducted at 23℃±3℃ and at 55℃ ±5℃, keep 24h or case temperature decline to 20% of the max temperature ,test is over.
|
|
4
|
Crush test
|
No fire、No explosion
|
A battery is crushed between two flat surfaces. The applied force is 13 kN±1kN by hydrocylinder, Once the maximum pressure has been obtained or voltage decrease to 1/3 of nominal voltage sharply, then release pressure.
|
|
5
|
Shock test
|
No fire、No explosion
|
The full charged battery is fixed on shock table, to force a certain shock to three mutual vertical direction, in initial 3ms, the min. average acceleration is 75gn,the peak acceleration is between 125gn and 175gn.
|
|
6
|
Heating test
(130°C)
|
No fire、No explosion
|
The cells are fully charged with standard charging condition, and put into incubator with nature air or cycled air convected, heat battery by velocity of 5°C ±2°C/min to 130°C±2°C,and maintain for 10mins.
|
|
7
|
Temperature
Cycling Test
|
no leakage, no fire, no explosion
|
The fully charged batteries are placed in a test chamber and subjected to the following cycles: a) Raising the temperature to 75°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. b) Reducing the temperature to minus 40°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. c) Repeating the sequence for a further 9 cycles. d) After the 10th cycle, storing the batteries for 24 hours prior to examination.
|
The company founded in 2014, focus on producing cylindrical power lithium-ion batteries. The company supply Electric vehicle cylindrical lithium battery, which include 1500mAh, 1300mAh, 2000mAh, 2200mAh, 2500mAh, 2600mAh Li-ion battery and 3000mAh Li-ion battery. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery. Our products have high quality and competitive prices.
