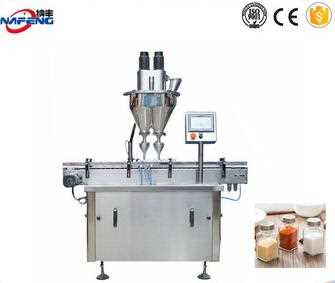

commercial spice powder filling machin/coffee powder filling machine
This machine can do the work of weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for bottle or bag packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
Quick Details
Description
- Type: Multi-Function Packaging Machine
- Condition: New
- Function: Filling, Sealing
- Application: Apparel, Chemical, Food, Medical
- Packaging Type: Bags, Capsule
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V
- Power: 1.2KW
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: NF
- Model Number: NFGX
- Dimension(L*W*H): 1000*920*2060mm
- Certification: CE Certification
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: coffee powder filling machine
- Packing material: powder
- Usage: powder filling
- Speed: 30-50bpm
- Material: SUS304 Stainless Steel
- Weight: 200kg
- power: 1.9kw
- voltage: 220v/50HZ
- sealing ways: three size sealing
- Machine type: Vertical Automatic Packing Machine
This machine can do the work of weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for bottle or bag packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
Descriptive abstract
This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.
Main features
Stainless steel structure;Quick disconnecting or split hopper could be washed easily without tools.
Servo motor drive screw.
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Save the parameter of different filling weight for different materials. To save 10 sets at most
Replacing the auger parts, it is suitable for material from super thin powder to granule.
|
Model
|
LD-1A-23
|
LD-1B-331
|
LD-1B-433
|
|
Control system
|
PLC & Touch Screen
|
PLC & Touch Screen
|
PLC & Touch Screen
|
|
Hopper
|
Quick disconnecting hopper
25L
|
Quick disconnecting hopper 50L
|
Split hopper
50L
|
|
Packing Weight
|
1 - 500g
|
10 - 5000g
|
10 - 5000g
|
|
Packing Weight
|
≤ 100g, ≤±2%
100 – 500g, ≤±1%
|
≤ 100g,≤±2%;
100 – 500g,≤±1%;
≥500g,≤±0.5%
|
≤ 100g, ≤±2%;
100-50g, ≤±1%;
≥500g, ≤±0.5%
|
|
Filling speed
|
40 – 120 times per min
|
40 – 120 times per min
|
40 – 120 times per min
|
|
Power supply
|
3P AC208-415V 50/60Hz
|
3P AC208-415V 50/60Hz
|
3P AC208-415V 50/60Hz
|
|
Total Power
|
0.93 Kw
|
1.4Kw
|
1.4Kw
|
|
Total Weight
|
130kg
|
260kg
|
280kg
|
|
Overall Dimensions
|
800×790×1900mm
|
1140×970×2200mm
|
1140×970×2200mm
|
