Quick Details
Description

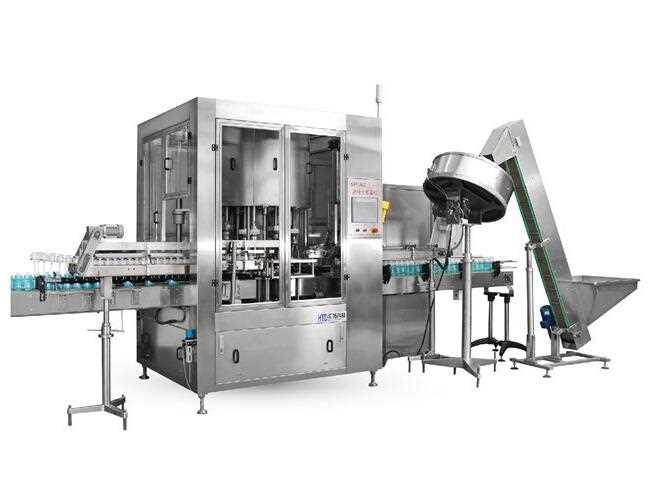

- Type: Capping Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
- Driven Type: Electric
- Automatic Grade: Automatic
- Voltage: 380V
- Power: 4kw
- Packaging Material: Wood
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: HUITUO
- Model Number: SP-8
- Dimension(L*W*H): ≥2*1.65*2.45m
- Weight: ≥4000kg
- Certification: CE
- Cap availability size: According to requirements
- Cap diameter: ≤50mm
- Bottle Height: 160-300 mm
- Screw capping heads: 4-12heads (according to requirements)
- Torque control: ±0.3Nm
- Capping conformity: ≥99.5%
- Air source needs: 0.6Mpa clean and stable air supply
Major Characteristics
1.Three claws structure, obtained many patent on technology, suitable for pump caps, duck mouth caps, trigger caps with straw.
2. PLC controlled , integrated cap sending ,grasping ,capping ( can affiliate with automatic cap sorting machine)
3. Automatic inlet cap and bottle position-setting and orientation, adjustable torque control.
4. Gentle manipulation, no scratch and injury to caps and containers
5. Easy changeovers, one line capable of several products
6. Connected with filling machine and labeling machine easily
7. Module structure, manipulate on the touch screen, easy maintenances
8. Suitable for containers made of PET/PP/PE/HDPE and so on
9. Production capacity can achieve 4000-8000b/h, higher speed can be customized.
10. Applicable in detergent, shampoo, shower gel, hand cleaning gel, laundry detergent and many other daily chemical products.
1. Company advantage
Huituo technology is a joint stock company on daily chemical package equipments and located in the foundation of domestic packaging machinery--Changzhou. since established in 2010,we always take daily chemical products packaging machinery as the core developing direction,and focus on research and manufacture full automatic intelligent capping machine,inserting machine and filling machine. within three years,we have already developed China initial SP series packaging equipments for daily chemical industry: full automatic pump capper,full automatic trigger capper,full automatic laundry pour spout inserter,high foamy strong corrosive
filling machine and so on. SP series have been adopted by many famous daily chemical companies home and abroad and it's perfect performance also has been approved by them,applicable in detergent,shampoo,shower gel,hand cleaning gel,bleach and many other daily chemical products.
FOUSE+INNOVATION +HIGH QUALITY =Our Foremost Advantages.
STABILITY +EASY OPERATION + FAST SPEED =Our Eternal Design Concept.
As the advocator of intelligent packaging,Huituo technology offer packaging series machines and whole production line solutions which are stable and reliable,operated easily and with high capacity for daily chemical industry.
keeping on collecting talents and innovating,Huituo technology adopted advanced innovating mechanism to attract and cultivate R&D team. By fair and transparent management concept and smart marketing strategies,huituo technology will become the technical leader of daily chemical products packaging equipments.
2. Star products
SP daily chemical series PUMP CAPPER,TRIGGE CAPPER
(1) Domestic initiative, have obtained 9 utility model patents and 1 invention patent.
(2)Applicable products:for Daily-chemical and Medical industries: detergent, hand wash,shower gel, shampoo, window cleaner, disinfectant.
Applicable caps: pump cap,trigger cap,dispense cap,etc.
(3) High qualified rate, reduce laborforce, save cost and greatly increase the production efficiency.
(4) Max capping speed can reache 7000 bottles/hour, may customized, cap sorter is optional.
SP daily chemical series POUR SPOUT INSERTER
(1) Domestic initiative
(2) Applicable for Daily chemical industry: laundry detergent.
(3) High qualified rate, reduce laborforce, save cost and greatly increase the production efficiency.
