• ZN63(VS1)-12 solid seal 36kv vd4 hd4 vcb vacuum circuit breaker

ZN63(VS1)-12 solid seal 36kv vd4 hd4 vcb vacuum circuit breaker

Rated current: 400A-630A; Breaking current: 20KA; Making current: 50KA; Thunder impulse withstand voltage: 4S;

Product Details

Quick Details

Description

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: OEM / Pinly
  • Model Number: ZN63(VS1)-12
  • Type: Vacuum
  • Poles Number: 3
  • Rated voltage: 10-12KV
  • Rated current: 400A-630A
  • Breaking current: 20KA
  • Making current: 50KA
  • Thunder impulse withstand voltage: 4S

Item

Unit

Data

Rated voltage

kV

12

Rated frequency

Hz

50

Rated current

A

630/1250

Rated short circuit breaking current

kA

20/25

Rated peak withstand current (peak)

kA

50

Rated short-time withstand current (4S)

kA

20

Rated short-circuit closing current (peak)

kA

50

Mechanical life

Times

Spring Operation 10000

Permanent Magnetic 30000

Rated current breaking

Times

O-0.3s-CO-180s-CO

Rated short-circuit breaking current

Times

30

Power frequency withstand voltage (1min)

kV

42(across open contacts:49/34)

Lightning impulse withstand voltage (peak) inter-phase

kV

75 ( across open contacts:85)

Closing time

ms

25~60

Total breaking time

ms

≤100

Arcing time

ms

≤20

Rated input power of energy storage motor

w

40

Rated operating voltage and rated voltage of auxiliary circuit

V

  DC 220,110,24                   AC 220,110,24

Storage time under rated voltage

s

≤10

Rated current of over- current tripper

A

5

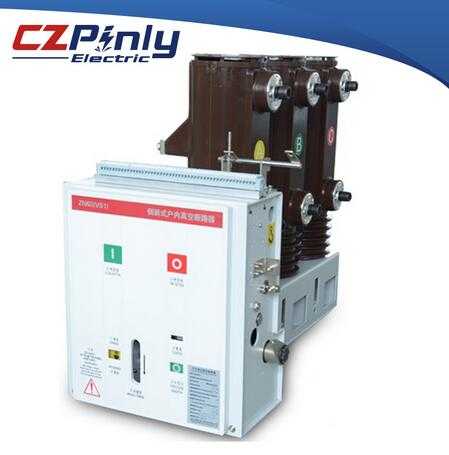

ZN63(VS1)-12 solid seal 36kv vd4 hd4 vcb vacuum circuit breaker

Company Profile

Yueqing Pinly Electric Co.,Ltd. was founded in 2014 as a high-tech modern enterprise engaged in the research and development, production, sale and service of auto connectors,wire harness,,termianls,seals,electric accessories,etc.

Taking "Specialized, Advanced, Stronger" as our main principle, we ensure strong R&D, high production standards and high quality services. Providing professional products with competitive prices and creative solutions, our systems are now applied by users in the transportation, telecommunication, electrical power, public security, energy and other fields.

Providing clients with advanced technology and high quality products, we maintain our position at the forefront of the industry through the spirit of "Creative development and pragmatic advancing".

Pinly people are committed to working with both business partners and customers to establish close cooperation, move into new fields of science and technology, and produce an even broader space for working together.
