Quick Details
Description
|
ZDN vibrator technology data
|
|
Mode
|
diameter
Φ mm
|
Φ mm Length
|
L mm vibration frequency
|
amplitude
|
mm Power
|
mm Power
|
kW weight
|
|
ZDN50
|
50
|
430
|
200
|
0.8
|
42V 3～200Hz
|
0.55
|
4.85
|
|
ZDN85
|
85
|
480
|
197
|
1.2
|
42V 3～200Hz
|
1.0
|
17
|
|
ZDN100
|
100
|
515
|
148
|
1.6
|
42V 3～150Hz
|
1.85
|
22
|
|
ZDN125
|
125
|
490
|
148
|
1.8
|
42V 3～150Hz
|
2.5
|
30
|
|
ZDN vibrator technology data
|
|
Mode
|
Capacity
kVA
|
kVA input
Phase / voltage / frequency / current
Phase/V/Hz/A
|
Phase / V / Hz / A, weight
Phase/V/Hz/A
|
kW weight
|
kg Dimension
a×b×c mm²
|
|
ZJB200
|
4.5
|
3/380/50/8.3
|
3/48/200/54
|
78
|
597×260×380
|
|
ZJB150
|
8.5
|
3/380/50/11.6
|
3/48/150/102
|
108
|
655×300×418
|

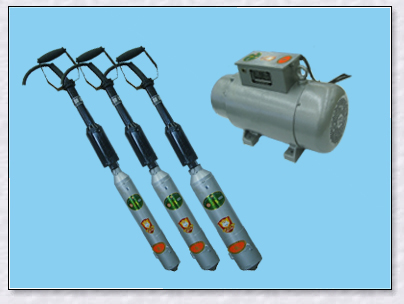

ZDN series motor built into the concrete vibrator for concrete foundation works of hydraulic engineering, electrical engineering, dams, buildings, bridges, ports, airports, highways, high-rise building construction, vibration compacting plastic, low-flow state and dry concreteadvantages of compactness, bubbles and anti-strong penetration, an important tool for large-scale concrete construction.
Anyang Vibrator Co., Ltd. was established in 1964. Our company is a professional manufacturer and exporter that is concerned with the design, development and production of building machinery and railway maintenance machinery (vibrator). We are located at the Middle of Haihe Blvd., Anyang High-Tech Development Zone, Henan Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Covering an area of 49000 square meters, we now have over 547 employees, boast an annual sales figure that exceeds USD 72.25 million US Dollars and currently export 30% of our products worldwide.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001, CCC and CRCC certifications.
As a result of our high quality products and outstanding customer services, we have gained a global sales network reaching North America, Southeast Asia, West Asia, Middle Asia, Africa, East Europe and other countries and regions.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
