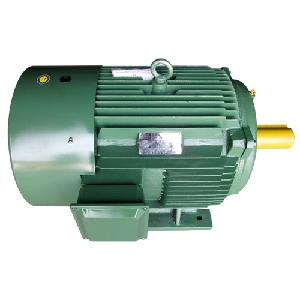

Y2 SERIES THREE—PHASE ASYNCHRONOUS MOTOR(H63-355)
All CE certified.
1. Ambient temperature: -15ºC~+40ºC
2. Altitude: Not exceed 1000m
3. Power range: 0.37-315kW
4. Rated voltage: 380V/415V/220V
5. Rated frequency: 50Hz
6. Protection class: IP54/IP55
7. Insulation class: F
8. Cooling method: IC411
9. Working duty: S1 (continuous)
10. Basic Installation Method B3 B35 B5 B34
11. Frame size: H63-355
12. Basic Pole: 2/4/6/8/10
13. Connection method: "Y" connection for 3KV and below, "Δ " connection for 4KV and above.
Product Description:
Y2 Series Three phase Asynchronous Motors (frame 80-355mm, power 0.8-315KW) are the renewal and upgrading products of Y series, are defined as totally enclosed fan cooling, squirrel cage type, and noted for its novel design, nice appearance, low noise, high efficiency, large torque, excellent starting performance, compact structure, easy maintenance etc.
It adopts F class insulation, and is designed with assessing method for insulation system according to international practice, which greatly enhances motors safety and reliability. Therefore, Y2 series motors have reached an international advanced level. IP54 degree of covering protection, IC411 cooling method, continuous duty (S1), 380V rated Voltage and 50Hz rated frequency. For 3KW below, the stator windings are connected in Y, while for 4KW and above are in triangular.
Advantage:
1. Novel design,
2. Excellent starting performance
3. High starting torque
4. Low noise
5. Little vibration
6. Safe operation
7. Easy maintenance
