Quick Details
Description
- Model NO.: XFS-150
- Packaging: Bag
- Volume: 5 --280 Ml
- Power Supply: 380V/50Hz/3phase
- Trademark: XINGFEIPACK
- Specification: CE
- HS Code: 84223030
- Automatic Grade: Automatic
- Packaging Material: Plastic
- Capacity: 40 -- 80 Bag/Min
- Weight: 600 Kg
- Transport Package: wooden case packing
- Origin: Shanghai,China

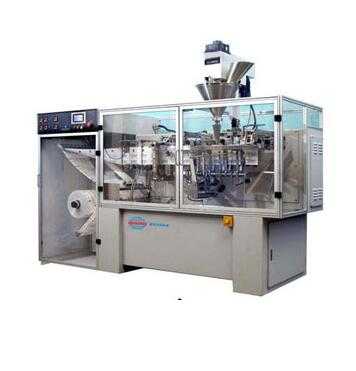

Granule And Powder Packing Machine
1. Automatic horizontal packing machine is a completely new packing machine which is made up of bag-making, dosing, filling and sealing. And the wrapping material is all kinds of multilayer heat-sealable films. Match with different filling head, the machine can pack powders, liquids, pastes, granule in three side or four side sealed sachets.
2. Character: It adopts PLC human-machine interface and all the actions are driven by air cylinder. The system for going down film uses servomotor control so that we can adjust dimension of film randomly, it has the advantage of high efficiency, applicability and stability. The package is beautiful, and the sealing strength is high. It is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, feedstuff industry and so on.
3. Technical data
4. Packing process:
1. Roller Film
2. "V" Formation
3. Mould for forming bags
4. Optical Sensor
5.4th Seal
6. Vertical Sealing Jaws
7. Scissors
8. Pulling Fingers
9. Opener
10. Filling funnel
11. Filling funnel
12. Upper Sealing Head
|
Model
|
XFS-150
|
|
Bag-making Size(W×H)
|
70×100 --150× 200mm
|
|
Volume
|
5 --280 ml
|
|
Capacity
|
40 -- 80 bag/min
|
|
Consumption
|
2 KWA
|
|
Air consumption
|
0.7 m ³ /min
|
|
Power supply
|
380V/50Hz/3phase
|
|
Weight
|
600 Kg
|
|
Dimension(L×W×H)
|
2600×970× 2000 mm
|
Shanghai Xingfei Packaging Machinery Co., Ltd., is a professional manufacturer engaged in the research and development of packaging machinery and food machinery, and we are a member of the Chinese Food and Packaging Machinery Industrial Association.
Our potential customers are middle and large scale enterprises from Mainland China and International market. Our packaging machinery, food machinery, and packing production lines have been sold not only in the Mainland China but also in more than thirty foreign countries, such as the USA, Germany, the Netherlands, Canada, Australia, New Zealand, Finland, Russia, Ukraine, Kazakhsta, Thailand, Vietnam, South Africa, and other countries and regions. Based on straight-out management notion, outstanding quality products, and favorable after-sales services, we have gained extensive recognition of customers from at home and abroad and built up long-term relationships with them.
Since our establishment, we have used European and Japanese advanced experience for reference and have developed several kinds of top-grade vertical packaging machinery, horizontal packaging machinery, and packing equipment used for different granule, powder and liquid, and other assistant packaging machinery. We also can supply the layout of automatic packing processing lines. If you choose "XINGFEI", you choose assured quality.
Our company is willing to cooperate with people from all circles, developing together and contributing our ability to make the Chinese packaging machinery and food machine industry move towards the world. Moreover, people from at home and aboard are warmly welcomed to our company to give us suggestion. By the tenet of close cooperation and mutual benefits, we would like to build a new future with you.
