Quick Details
Description
Characteristics:

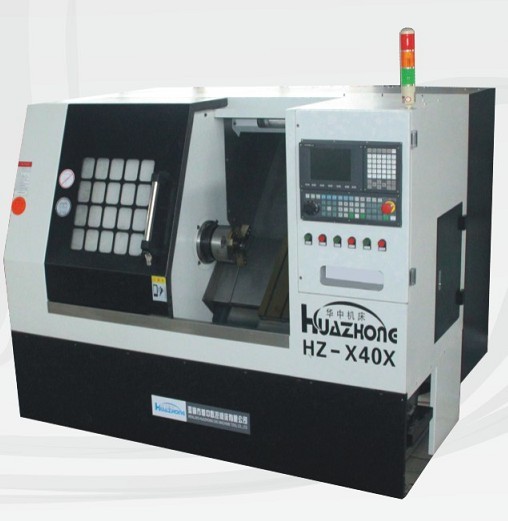

The machine has a unique design aesthetic with high-speed, precision,Efficient, the shape of turning the various features of complex parts, suitable for auto parts,Fittings, valves and other parts of the high-volume processing. Also suitable for small and medium-sized production.
1、clamping the work of the form: three-jaw chuck, hydraulic chuck.
2、the standard computer configuration NC Guangzhou.
3、 machine tool accessories, control systems to choose in accordance with user requirements. (Four, six-station Tool, knife tool optional row; optional manual tailstock hydraulic, hydraulic chuck,Hydraulic cylinder optional)
4、 product descriptions, samples, pictures and technical parameters such as the development and changes, without notice.
Technical parameters
|
ltem
|
unit
|
specifications
|
|
Max.swing over carriage
|
mm
|
Ø110, Ø130
|
|
Max.swing over bed
|
mm
|
Ø360
|
|
Max.turning diameter
|
mm
|
Ø320
|
|
Max.turning length
|
mm
|
280,200
|
|
X-axis to maximum stroke
|
mm
|
320
|
|
Z-axis to maximum stroke
|
mm
|
330
|
|
X to the ball screw
|
|
2506-C3
|
|
Recommend Z-aixs motor torsional gauge
|
N.m
|
6
|
|
Z to the ball screw
|
|
3210-C3
|
|
Recommend Z-aixs motor torsional gauge
|
N.m
|
6
|
|
Bed and horizontal gradient
|
|
45°
|
|
Guide span
|
mm
|
362
|
|
Maximum speed
|
rpm
|
4000
|
|
Through hole diameter
|
mm
|
Ø46
|
|
Shaft end type
|
|
A2-4
|
|
Recommend spindle motor power
|
kw
|
3.7 or 5.5
|
|
Optional hydraulic chuck or collect
|
kg
|
5′or type 36
|
If you are interest in our machine tools, welcome to visit factory. Supply you with free accommodation,food and presentation.
赵玉云/CARA.ZHAO
TEL:86-0411-39803827
FAX:86-0411-39803301
Mobile phone:86-013309862893
EMAIL:zhaomachine@163.com
Hua Zhong CNC Machine Tool Co., Ltd. Is a professional CNC machine tool manufacturing business, the company is located in economically developed coastal city-Wenling city, in the heart of industrial area-Xinhe industrial zone, close to Chinese 104 national road(Yong-Tai-Wen Expressway). So the transportation is convenient. Since the beginning, the company has been adhering to the tenet-“customer first, reputation first”, determining in the product development, constantly innovating and adopting flexible business approach, which provide customers with quality products and quality service.
We independently research and develop the CK0620,CK6130,CK6136,CK6140,CK6150 series of CNC machine tools and we also customize a large number of high quality special machine tools for many enterprise, which are very welcomed by the majority of new and old customers for the favorable price. Our purpose is to supply High-quality products and perfect after-sales service. These are the pursuit of all our employees and what make customer trust.
Hua Zhong CNC machine tools always adhere to the service principle of “customer- centered” continuous improvement of products to meet customer needs, self-improvement and development, and dedicate to providing quality products to our customers at home and aboard, warmly welcome new and customer come to welcome.
