Quick Details
Description
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: HAIZHILI
- Model Number: PT350B
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hand
- Power: 0
- Rated Loading Capacity: 350kg
- Min. Lifting Height: 350mm
- Max. Lifting Height: 1300mm
- Table Size: 905*500mm
- Overall Dimensions: 915*500*920mm
- Weight: 108KG
- Certification: CE, ISO9001
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas

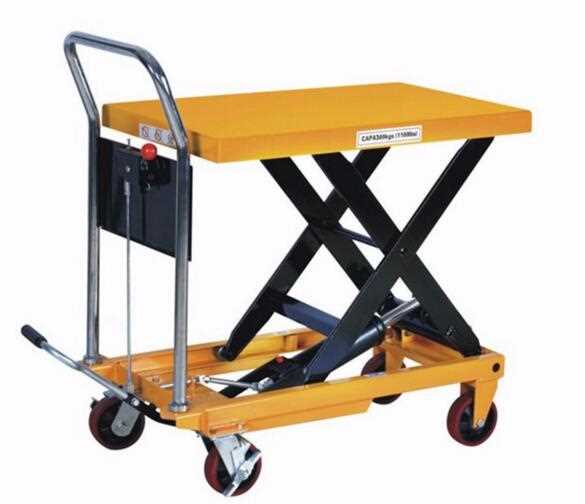

- Product name: Hydraulic elevator platform
- Load capacity: 350 kg (300kg, 500kg, 1000kg, 2000kg are also available.)
- Min lifting height: 350mm
- Max lifting height: 1300mm
- Wheel size: 125mm
- Color: Yellow / red / blue or as your requirements
- Main Material: Metal
- Scissor: Double scissor
- OEM: Yes
- Sample order: Acceptable
Specification of hydraulic lift table:
|
Model
|
PT300B
|
PT350B
|
|
Load capacity
|
300kg
|
350kg
|
|
Raised height
|
900mm
|
1300mm
|
|
Lowered height
|
280mm
|
350mm
|
|
Platform size
|
815 * 500mm
|
905 * 500mm
|
|
Tabletop thickness
|
50mm
|
50mm
|
|
Lifting speed
|
15mm/s
|
15mm/s
|
|
Wheel dimensions
|
Ø125mm
|
Ø125mm
|
|
Net weight
|
76kg
|
108kg
|
|
Gross weight
|
78kg
|
110kg
|
|
Packing size
|
900*510*290mm
|
1010*520*360mm
|
|
Packing volume
|
0.133cbm
|
0.189cb
|
|
Qty./20'GP
|
168 pcs
|
132 pcs
|
Tips: The electric lift platform size & load capacity can be customized according to your requirements.
Desciption of hydraulic lift table:
Ideal for transporting loads to and from work cells, the portable china scissor lift platform can be used as work platforms or raised and lowered to facilitate load transfer to tables or benches.
Feature of hydraulic lift table:
1) Welded all-steel frame with Powder-coat finish for maximum durability and protection.
2) Convenient foot pump for easy lifting and lowering.
3) Overload protection ball valve prevents lifting loads past maximum capacity.
4) Steering casters with brakes.
5) Compact design flexibility and effort moving.
Haizhili Machinery Co., Ltd. was founded in 1997. Haizhili is a high tech enterprise of research and development, manufacture, sales and after-sales service of material handle equipments. With 2 production bases, covers an area of 20000 square meters, Haizhili has more than 500 experienced technicians. We can provide our customers efficient, safe, comprehensive solution for aerial work, cargo lifting, warehousing & logistics transportation.
Guangdong production base: located in Dali Town, Nanhai District, Foshan City,
only 40 minute driving from Guangzhou. Mainly manufacture of elevating work platform, lift platform, cargo lift, tail lift etc.
Hubei production base: located in high tech development zone of Jingshan. Mainly manufacture of manual pallet truck, semi electric pallet truck, electric pallet truck, manual stacker, semi electric stacker, electric stacker, loading ramp etc.
We can customized products according to your specific requirements.
Haizhili got the Manufacture License of Special Equipment ( serial number: TS2444093-2013) in June 15, 2013, and got Installation, Alteration & Maintenance license of Special Equipment installation modification maintenance license (serial number: TS3444171-2013) in Sep.24,2013. Haizhili also got the ISO: 9001:2000 quality system certification.
Haizhili has hundreds of stores, transit warehouses and after-sales service points in China. Haizhili also has thousands of distributors. No matter where you are, you can get our professional after-sales service in time in China. Now Haizhili is expanding our business to the whole world. With perfect pre-sale service, in-sales service, after-sales service, haizhili has earned good reputation and trust from clients home and abroad.
Haizhili has always followed a policy of "Quality first, Technology leading, Cooperation and Win-win ". Haizhili has been developing itself by researching on new technology and new products, offering superior products and service for customers. If you are looking for smooth business, profit and success, we are the right supplier. With good quality and professional service, we have fully confidence that Haizhili will be your best partner. We sincerely hope to cooperate with you for win-win situation.
