Quick Details
Description

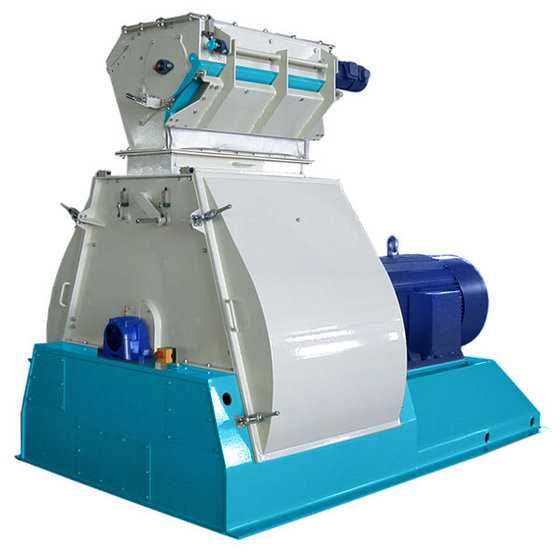

The waterdrop wood hammer mill is specially developed for large or
medium wood processing industries. Adopting the advanced grinding bin waterdrop shape design and efficient grinding method, it is mainly used to grinding wood materials for further processing. The waterdrop wood hammer mill can be used for both wood common grinding and wood fine grinding. The end product has a wide range application in biomass fuel field. Low energy consumption, stable function, compact structure. It has been proved to be an admirable wood crushing machine.
Wide Applications Range of Waterdrop Wood Hammer Mill
The waterdrop wood hammer mill is common used to grinding wood materials such as wood cuttings, planer shavings, dry wood chips, green wood chips, pre-hogged wood scraps, wood barks, torrefied biomass and so on. The final product of the wood hammer mill is of high quality and uniform size, which has a wide application for processing wood pellets, wood briquette, boiler fuel, animal bedding, wood composite board, wood flour, playground cover,etc.
Waterdrop Wood Hammer Mill Masterly Components and Tactfully Function
a. Waterdrop grinding bin design: the waterdrop grinding bin design has expanded the grinding space of the wood hammer mill. The capacity and the grinding efficiency has also been increased.
b. Two-way movement blades: the special rotor design allows the grinding blades to work in both positive direction and the opposite direction. You can change the rotating direction of the blades after a period of grinding. Thus the operating lifetime of the blades will be extended.
c. Optimized blades arrangement: the blade arrangement optimization refers to increasing the working efficiency by adjusting the number of the blades and the distribution of the blades. With the optimized blades arrangement, the working efficiency of the wood hammer mill has increased and the energy consumption has reduced at the same time.
Waterdrop Wood Hammer Mill Technical Parameter
| Model |
SFSP56*36 |
FSP56*40 |
FSP60*30 |
FSP60*45 |
FSP60*60 |
FSP60*75 |
FSP112*40 |
| Capacity |
2.5--5t/h |
4--7t/h |
2--5.5t/h |
5--9t/h |
6--10t/h |
8--13t/h |
12--22t/h |
| Diameter of rotor |
560mm |
560mm |
600mm |
600mm |
600mm |
600mm |
1120mm |
| Width of chamber |
360mm |
400mm |
300mm |
450mm |
600mm |
750mm |
400mm |
| Hammer NO. |
20 |
24 |
24 |
44 |
48 |
60 |
40 |
| Speed of rotor |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
1440r/min |
| Power |
18.5/22kw |
30/37kw |
18.5/22kw |
45/55kw |
75/90kw |
90/110kw |
90/110kw |
